Our technical experience in product innovation helps us to have a range of products that are always kept up to date and in line with all the latest international standards. For this reason, the quality of EFFAST product is the most prestigious in the international field and cover both technical standards and permits for use with drinking water and food fluids according to the regulations in force in various countries.

uPVC valves
. Unplasticised polyvinyl chloride (uPVC) is one of the most widely used thermoplastic materials for pipe installations. Being odourless and tasteless is suitable for conveying potable water and many food products. uPVC has excellent chemical resistance
. The good flow characteristics are the result of the smooth bore and it has good resistance to abrasion
. It us recognized by their dark grey colour RAL 7035
Materials:
It is conforming to the EEC safety levels for vinyl chloride monomer (VCM) and the WRAS requirements for use with potable water
Chemical resistance:
It is resistant to most solutions of acids, alkalis, salts and to solvents that can be mixed with water. uPVC is not resistant to aromatic and chlorinated hydrocarbon

Thermal expansion:
The thermal coefficient of linear expansion is 7.8 x 10-5 m/m°C
Temperature range:
0°C to +60°C

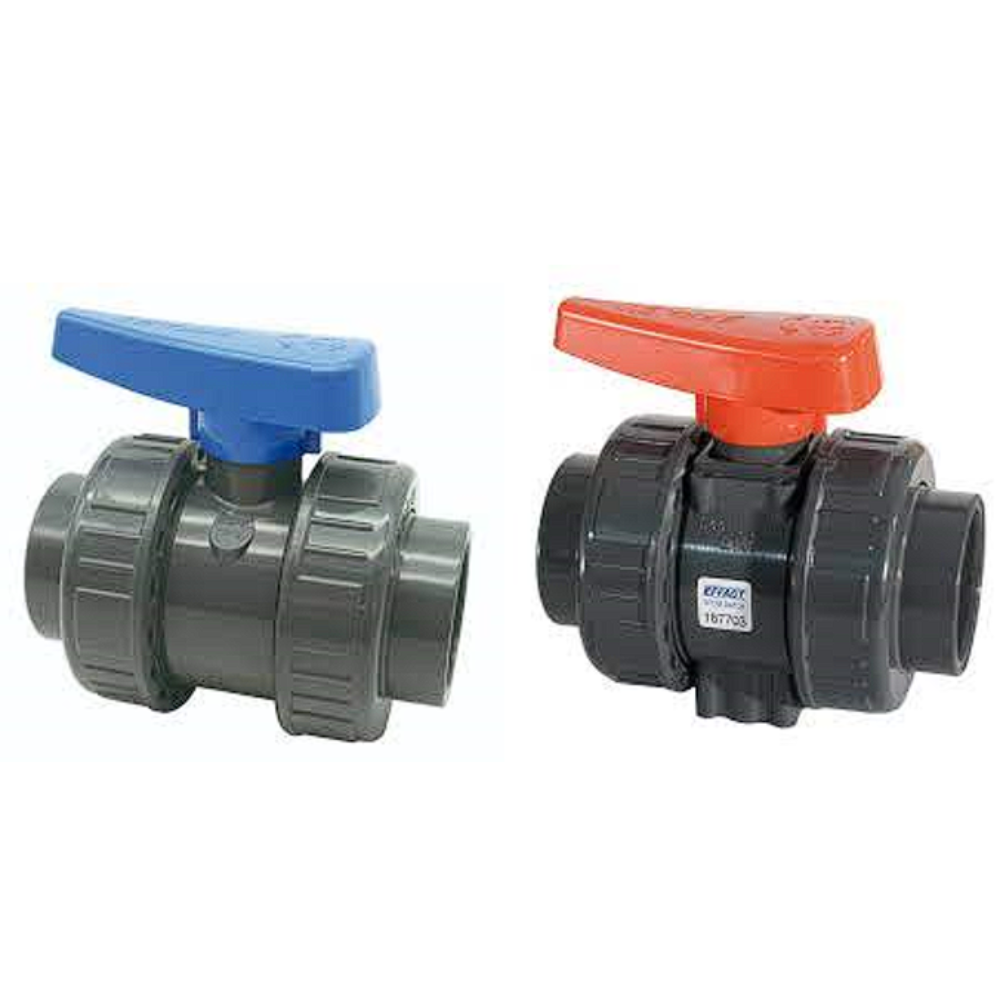

Technical features:
• Floating full bore ball locked in place on both sides
• Fully round ball smoothed by special turning machine
• Machined stem seat
• Solvent welded sockets, threaded sockets, HDPE sockets or flanges
• PTFE ball seatings
• Norminal pressure (PN): 16 bar/ 232 psi
• Handle with combined key for the dismantling of the valve and tightening of threaded gasket carrier

Technical features:

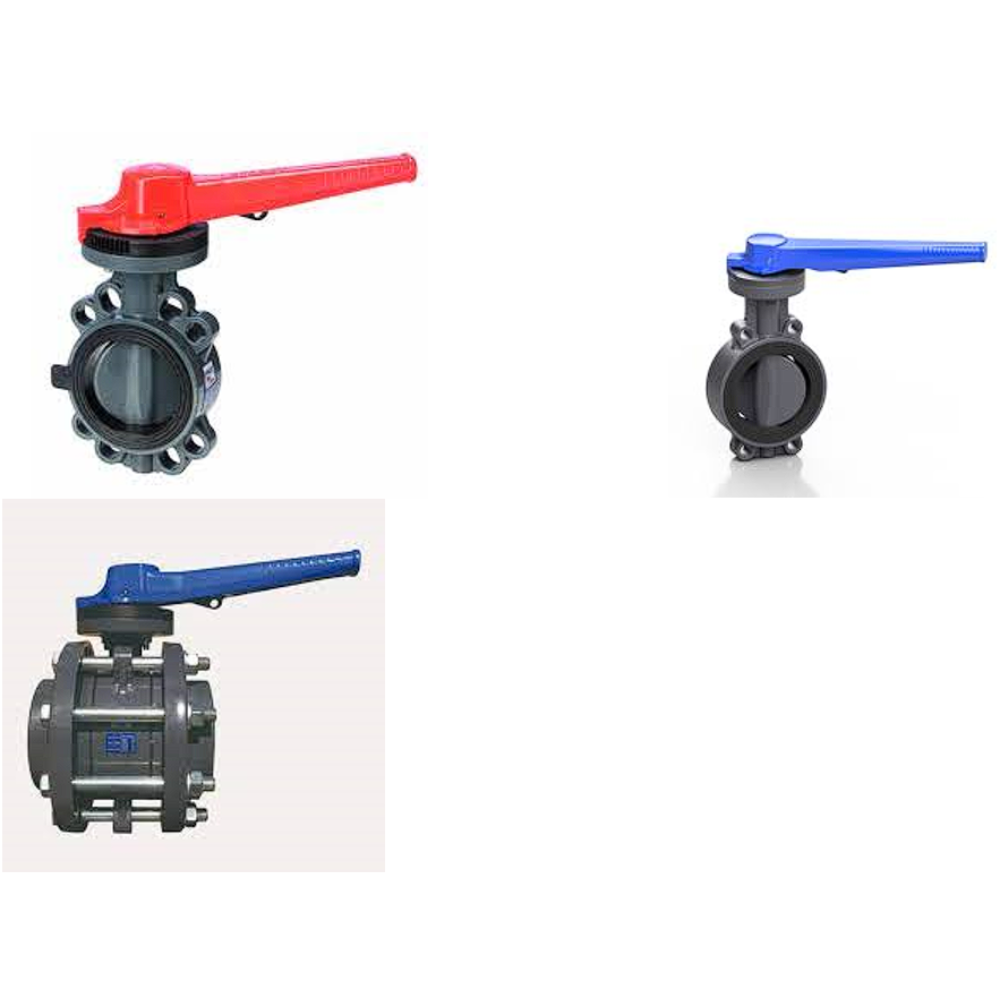

• High flow patented disc with high flow profile. Higher flow rate and smaller pressure loss than traditional disc. The offset disc allows excellent rolling of the fluid, and then an accurate flow regulation
• uPVC body machined to guarantee a secure seal
• EPDM or FKM certified main gasket
• SS AISI 420B or SS AISI 316 stem
• Ergonomic handle with closing system “ push and rotate”
• Regulating plate with 19 positions between 0° and 90°
• Norminal pressure (PN) at 20°C : 10 bar (145psi)
• Holes compatible with the international standards : DIN, ANSI, JIS

Technical features:

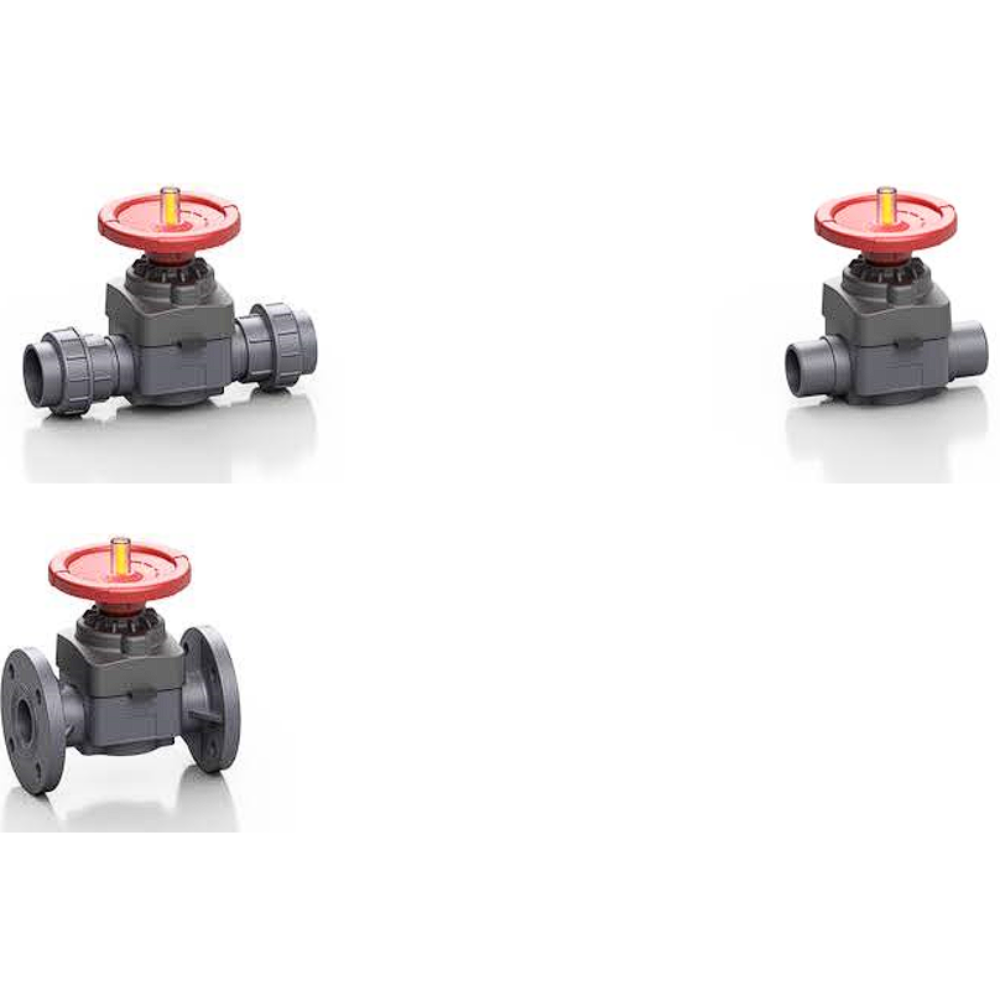

• The diaphragm valve has a low maintenance membrane actuator which can be controlled by air or inert gas. Normally Closed (NC), Normally Opened (NO) and Double Acting (DA) control functions are available. All medium wetted parts and the actuator housing are made of high-grade plastic materials which can be selected to suit the application.
• The chemical resistance of the valve is subject to the type of fluid, the temperature, the pressure as well as the materials and seals of the valve
• Optimized pressure drop due to body design
• Stainless steel mounting inserts designed to support the valve. Same distance between the inserts for all DN
• Standard handwheel
• EPDM, FKM or PTFE diaphragm (EPDM backing)

Technical features:

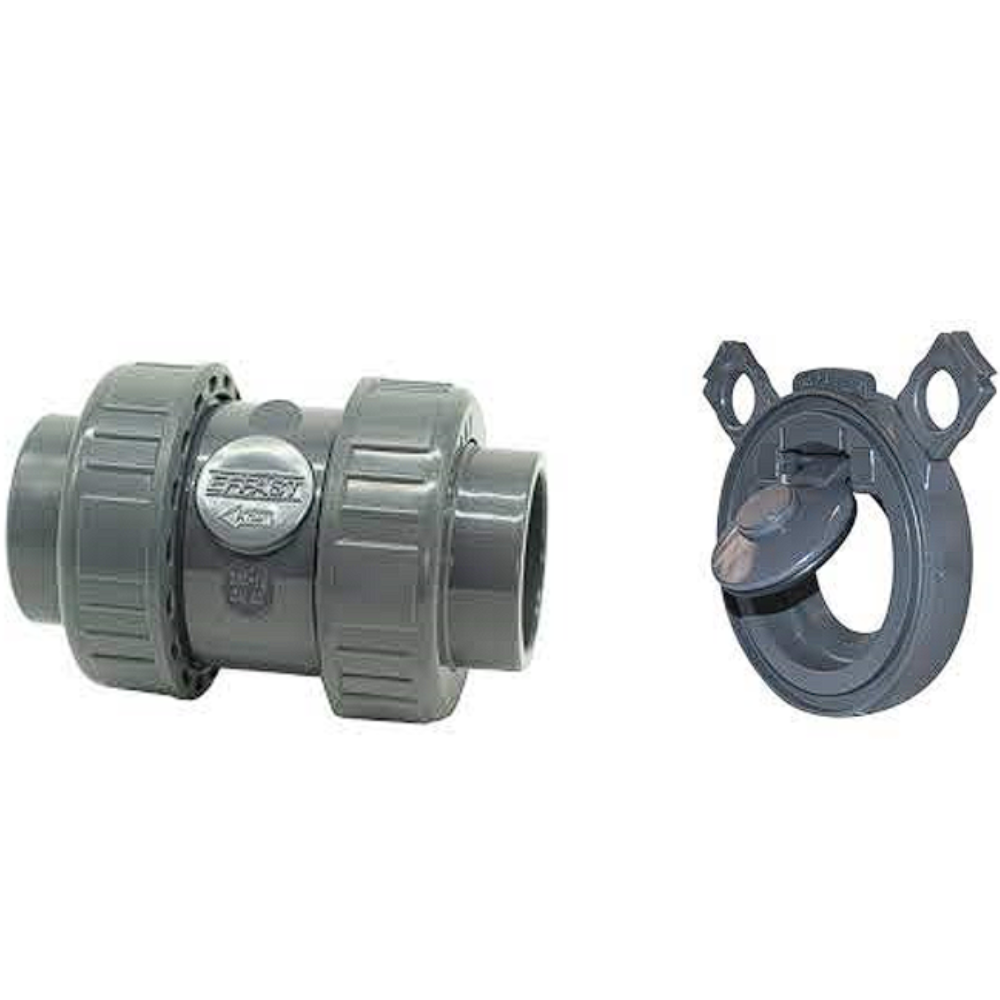

• Valve’s body suitable to be installed directly between stubs and in accordance with ISO/DIN/ANSI standards
• O-ring system is used to guarantee a flawless seal
• Maybe used either vertically or horizontally
• Available with spring (For horizontal installation)
• Nominal pressure (PN): 10 bar (145 psi)

Technical features:
• Solvent welded sockets (ISO, BS) or threaded sockets (BSP)
• Without metal parts in contract with fluid

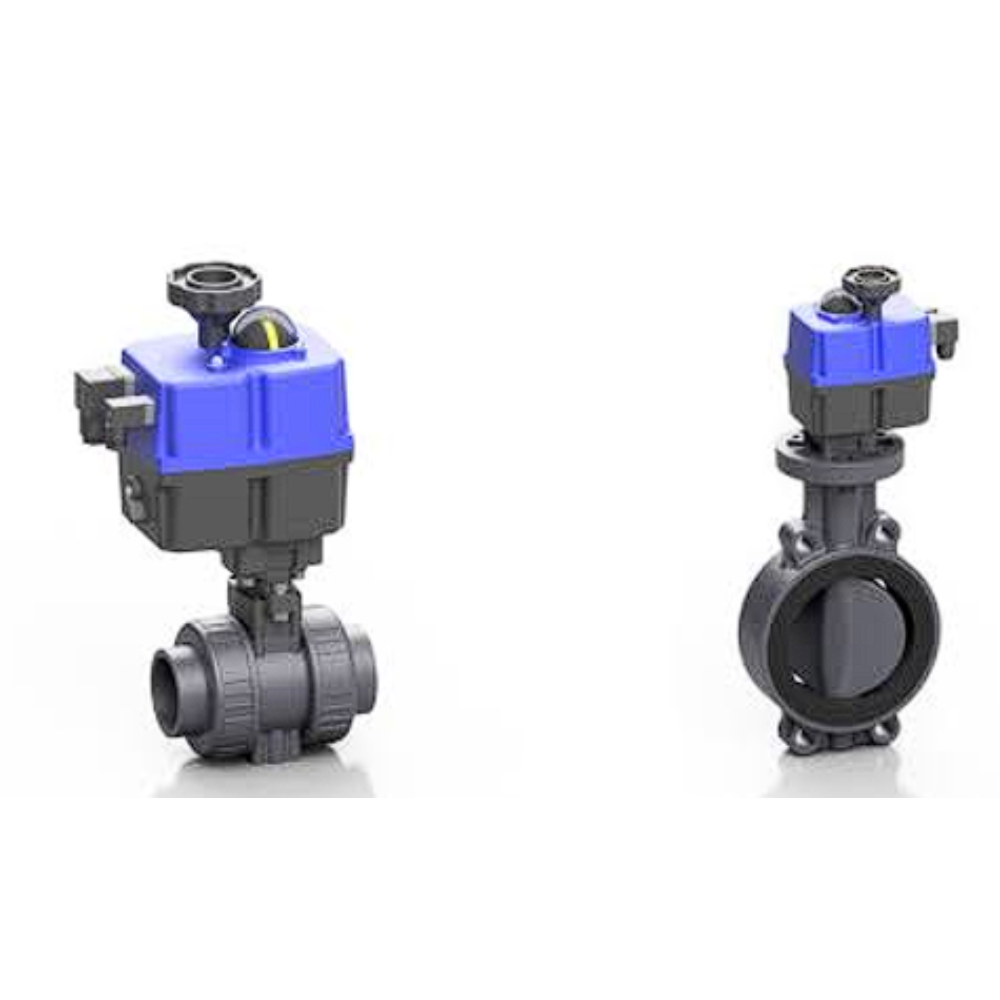

A. Electric Actuator
• Available 12 V electric actuator and multivoltage electric actuator (24-240V/ 85-240V)
• Material:
Housing: Anticorrosive polyamide (lid & body)
Main external shaft: stainless steel
External screws: stainless steel
Gears: steel and polyamide
Visual position indicator: Polyamide
Dome: Polycarbonate

B. Pneumatic Actuator
• Available spring return pneumatic actuator and double-acting pneumatic actuator
• Material:
All external fasteners are corrosion-resistant stainless steel
Actuator body: Extruded Aluminium (6063 or 6005)
Pinion: Nickel Plated Carbon Steel
Piston: Anodized Aluminium
End cap: Die Cast Aluminium Epoxy Coated

ABS Valves
ABS (Acrylonitrile Butadiene Styrene) is highly rated as a thermoplastic pipework system and is used in many applications such as food and beverage processing as well as water and sewerage treatment and many other industries.
ABS has good chemical resistance with high impact strength and low moisture absorption ABS is non-toxic and conforms to the toxicological requirements of the British Plastic Federations, British Industrial Biological Research Associations Code of Practice for food usage 45/5.
It also fulfill the EEC requirements for plastic materials in contact with foodstuffs
ABS systems are lightweight, rigid and easy to install using a solvent cement
. It is recognized by their light grey colour RAL 7046
Chemical resistance:
It has good resistance to most diluted inorganic acids, salts, animal fats and oils and organic acids. It is not resistant to organic solvents, alcohol, petrol, acetic acid or vegetable oil
Thermal expansion:
The thermal coefficient of linear expansion is 10.1 x 10-5 m/m°C
Temperature range:
-40°C to +60°C

Technical Features:

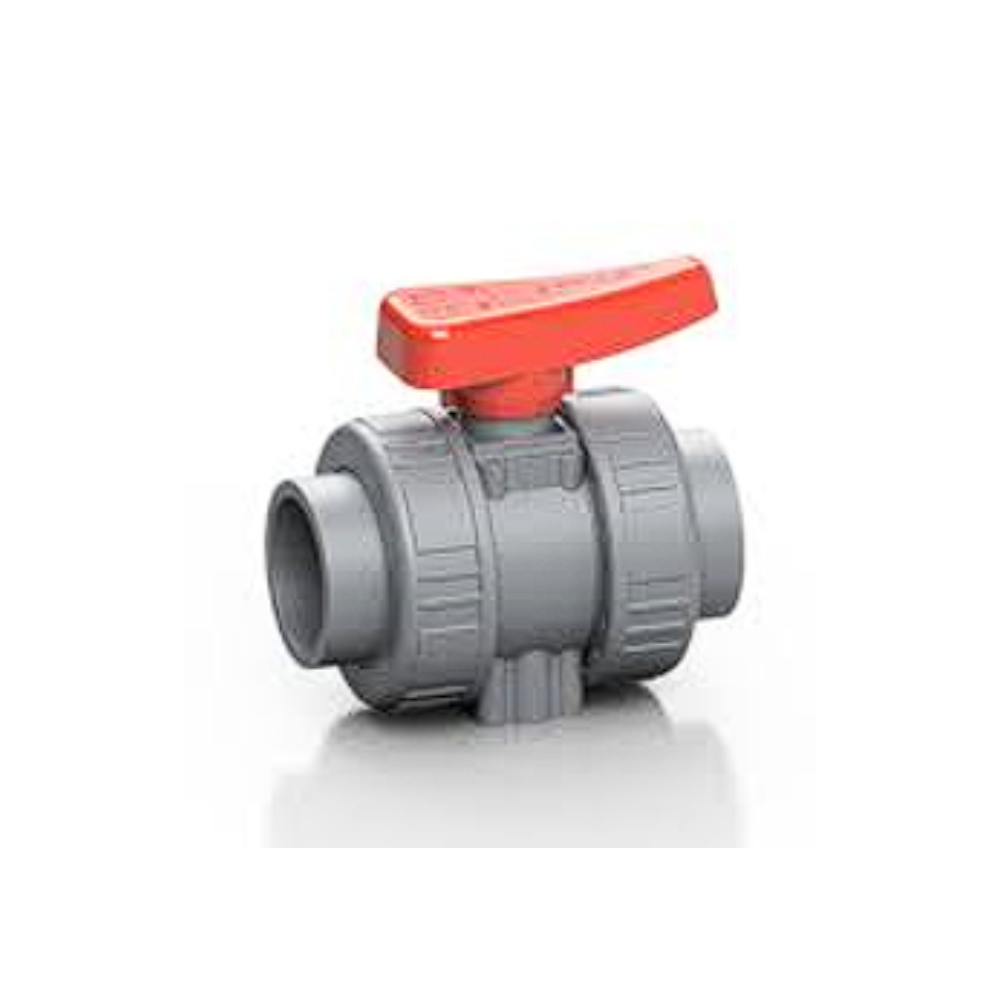

• Floating full bore ball locked in place on both sides
• Fully round ball smoothed by special turning machine
• Solvent welded sockets (ISO,BS, ASTM,JIS), threaded sockets (BSP,NPT) or flanged
• PTFE ball seat
• Nominal pressure (PN): 16 bar/ 232 psi
• Handle with combined key for the dismantling of the valve and the tightening of threaded gasket carrier
• Ergonomic handle with integrated tool for removing of union bushings and adjust the ball seat carrier
• Stem with dual O-ring system machined stem seat
• Valve body designed to be actuated by a kit (according to ISO 5211)

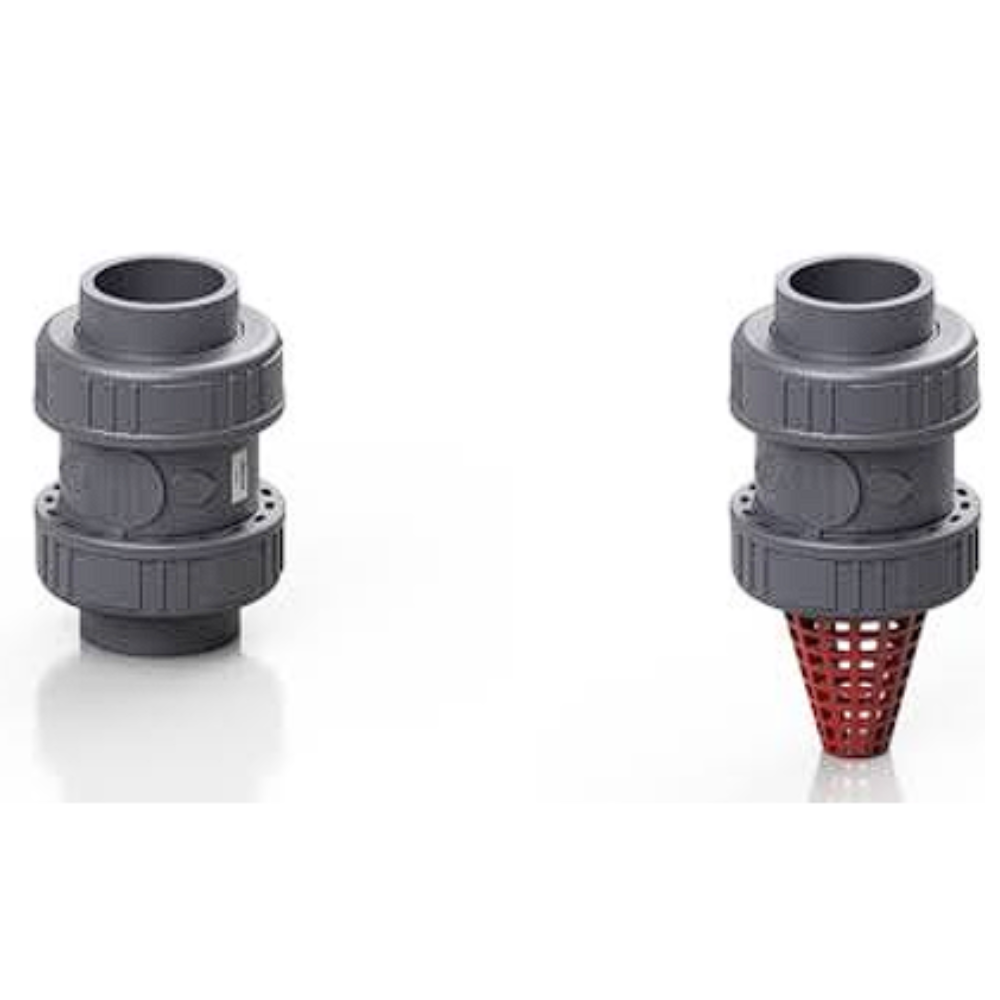

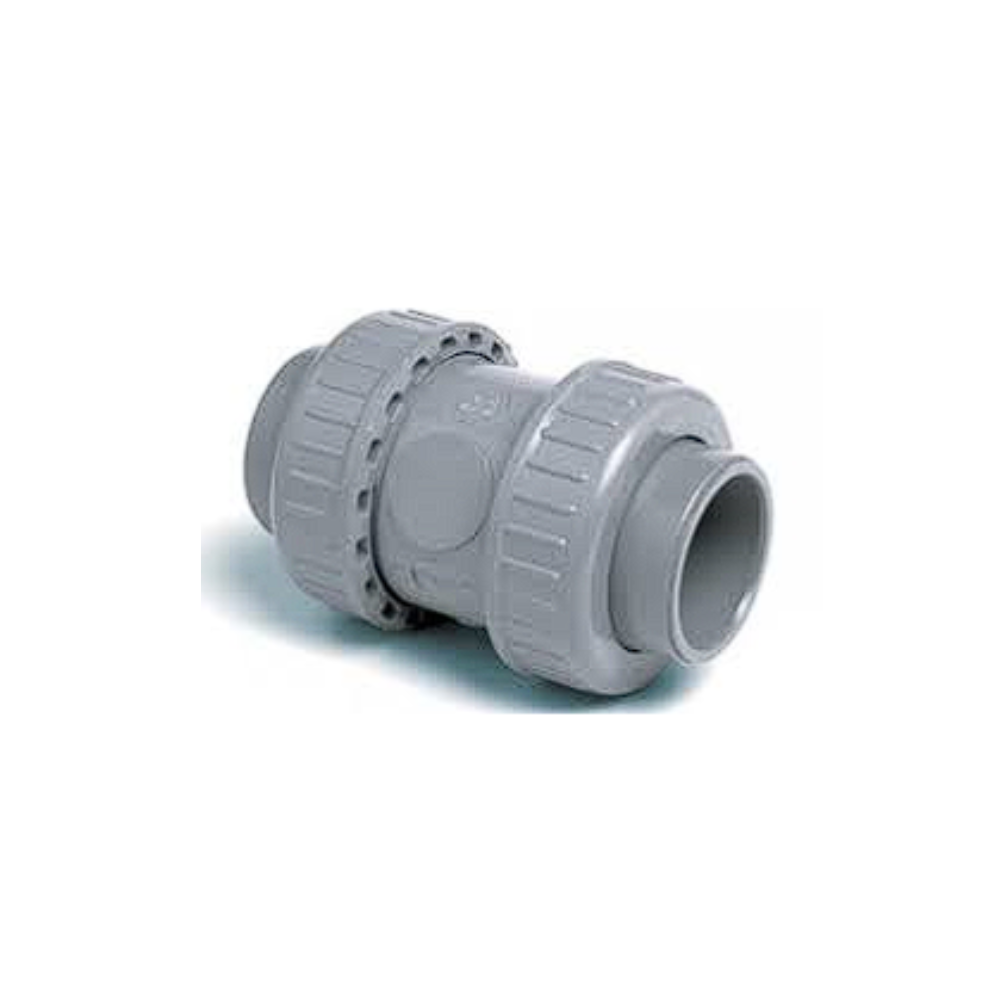

Technical Features:
• Stainless steel spring, PTFE coated available on request
• Nominal pressure (PN) : 16bar (232 psi)
• Maybe used either vertically or horizontally
• Solvent welded sockets or threaded sockets

PP-H Valves
Polypropylene are widely used in industrial processing applications, offers good resistance to abrasion, good thermal properties and is suitable for working at higher temperature than uPVC and ABS

. Polypropylene material is beige-grey in colour

Polypropylene has excellent chemical resistance. It is resistant to acids, alkalis, salts and to a number of organic solvents. It does not resist to oxidizing acid with high concentration

Thermal expansion
The thermal coefficient of linear expansion of PP-H is 15 x 10-5 m/m.°C

Temperature range: 0 °C to +100°C

Standards:
ASTM D 4101-17 : Standard classification system and basis for specification for Polypropylene Injection and Extrusion Materials

DIN 16962: Pipe fittings and joint assemblies for Polypropylene (PP) pressure pipes – Part 5: General quality requirement and testig

EN 1SO 15494: Plastic piping systems for industrial applications – Polybutene (PB), polyethylene (PE), polyethylene of raised temperature resistance (PE-RT), crosslinked polyethylene (PE-X), polypropylene (PP) – Metric series for specifications for components and the system

Technical features:

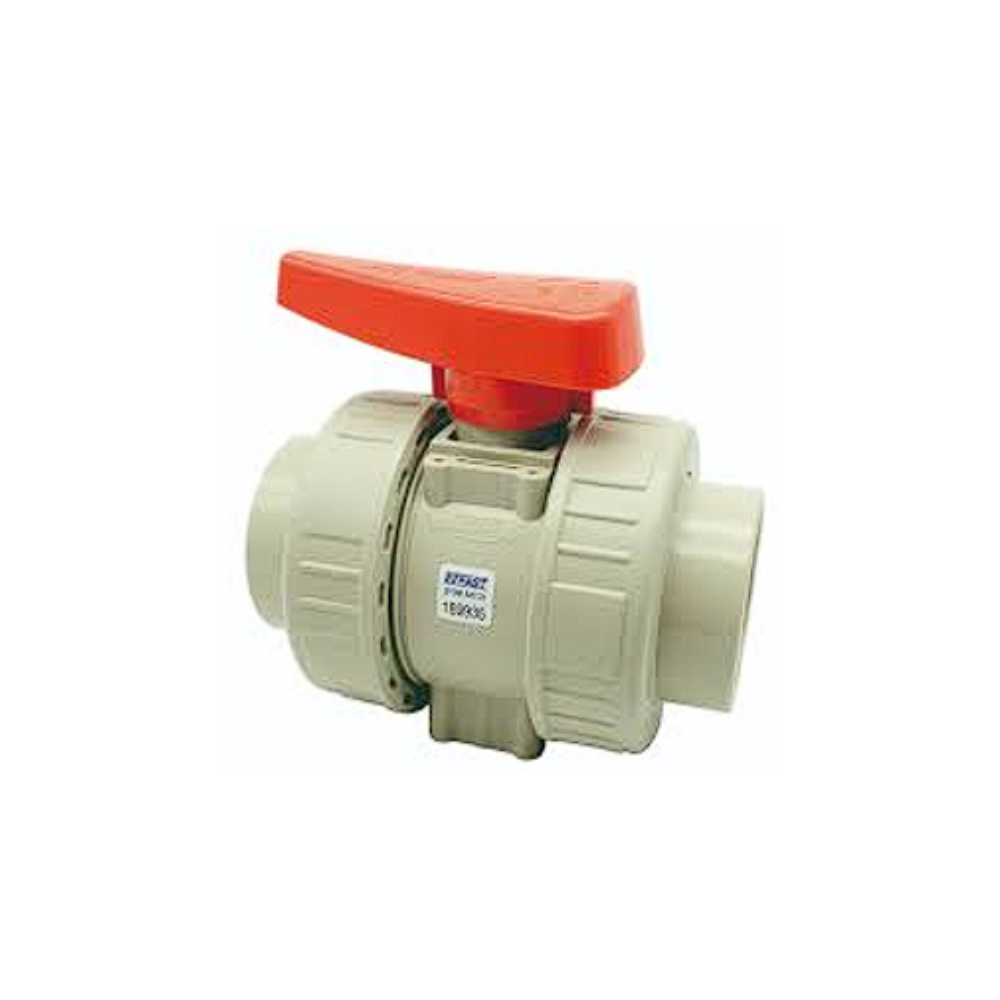

• Floating full bore ball locked in place on both sides
• Fully round ball smoothed by special turning machine
• Machined stem
• Connection system for weld
• PTFE ball bearings
• Nominal pressure (PN): 10 bar (145 psi)
• Handled with combined key for dismantling of the valve and the tightening of threaded gasket carrier

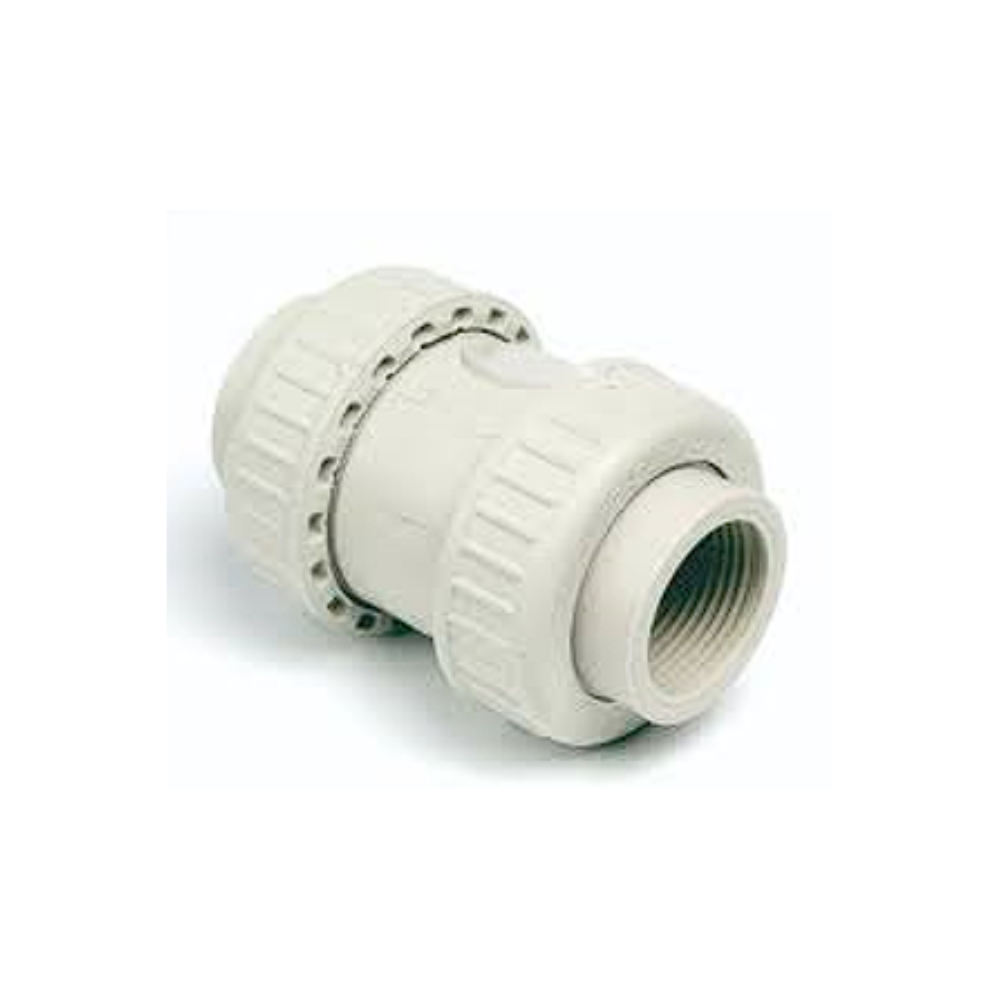

Technical features:
• Stainless steel spring, PTFE coated available on request
• Nominal pressure (PN): 10 bar (145 psi)
• Maybe used either vertically and horizontally
• Connection system for weld

Technical features:

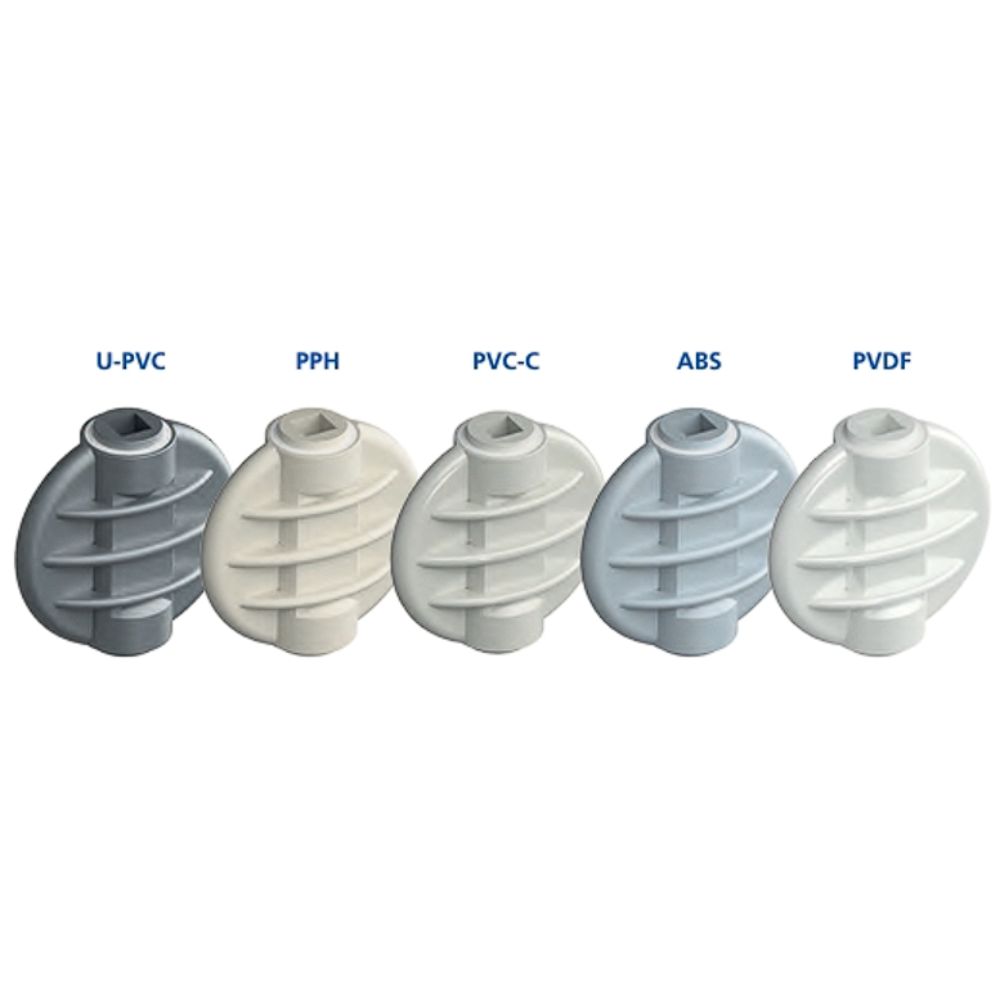

The ProFlow T Series Valves can be supplied with the multi-material system consisting of a glass fibre reinforced PP-H body and disc in different materials based on the application:
• u-PVC: The good temperature range of use ensures excellent thermal stability and chemical resistance. u-PVC can be used with most aggressive liquids such as acids, bases and salts. Range of use: 0°C to 60°C
• PVDF: Material with exceptional resistance to acids, salts and hydrocarbons. With the FKM gaskets and PTFE seals, it can be used in temperature range between - 40°C to +140 °C
• CPVC: Excellent thermal stability, particularly suitable for wear and tear in the industrial field, it has excellent resistance to wear and to deterioration. Temperature range 0°C to 100°C
• PP-H: Extreme hardness, excellent chemical and corrosion resistance to many acids, bases and solvents, excellent mechanical resistance to shocks. Temperature range 0°C to 100°C
• ABS: Wide range of temperature utilization especially below zero°C; high mechacial resistance to impact, good chemical and UV resistance , low thermal conductivity, low specific weight. Temperature range : -40°C to +80°C
• Regulation plate with 19 positions between 0° to 90°
• Ergonomic handle with closing system “push and rotate”
• Ready to be actuated without the use of additional kits
• Compatible with international standards (DIN, ANSI, JIS)
• HighFlow patented disc with high flow profile
