ITQ 0020
• Suitable for small 1” ball valve automation
• Very high efficiency and cyclic life
• Free voltage (87~270VAC, 1 Phase) and optional 24V AC/DC
• Very compact and light weight

ITQ 0040
• Suitable for on-off small ball/plug valves and damper automation
• By combination of spur gears, provides very high efficiency
• The motor is a specially designed induction motor that produces high starting torques and thermally protected from overheating
• Manual operation by Spanner and dial position indication
• Compact and light weight
• High duty cycle
• Remote Position Controller (RPC) Input & Output signal

ITQ 0080
• Newly designed and developed for especially small ball & plug valves and damper automation
• Self-locking combination of spur and worm gears that require no brakes
• The motor is a specially designed induction motor that produces high starting torques and thermally protected from overheating
• Mechanical stopper bolts to prevent from over travel
• Easy set cams without special tool
• Manual operation by wrench directly to the worm gearbox and dial position indication

ITQ 0100- ITQ 9000
Features:
• Captive cover bolts
• Cable entries
• Tapered interface between cover and lower housing
• External mechanical stopper
• Manual override
• Limit switches and Torque switches
• Torque switches
• Terminal , Indicator and Space heater
• Removable drive bushing and ISO 5211 mounting base

Our ITM Series is expected to be a valued addition to our range of industrial valve automation products with the same proven reliability. We are now able to provide our customers with the complete actuators solution, whether it is a quarter-turn or a multi-turn solution that is required .
Main application fields:
ENERGY: Petrochemical/ Oil-Refining Facilities, Power Plants, District Heating Systems
WATER TREATMENT: Filtration, Sewage Disposal Plants, Reservoirs, Pump Stations, Sluice Gate, Dams
CHEMICAL PLANT: Pharmaceutical Factories, Various Industrial Plants
OTHERS: Steel Mills, Cement Factories, Shipbuilding (Ship-Yards), Food & Beverages Factories, HVAC and etc.
Features :
• Compact and robust construction
• Hard anodized aluminium housing inside and outside with external powder coated against severe industrial environment
• Enclosure using radial seals & O-rings that provide waterproof IP67 (NEMA 4&6) and watertight IP68
• Mounting base according to ISO 5211 standard
• Removable drive bushing for easy machining and mounting
• Auto-deducting manual override hand-wheel with pad-lockable auto/manual swtchable lever
• Reliable mechanical torque sensing system providing safe operation in overload condition
• The larger indicator provides better position indication from a distance
• Various local position control options providing easy commissioning and operation in the field
• Digitalized control component

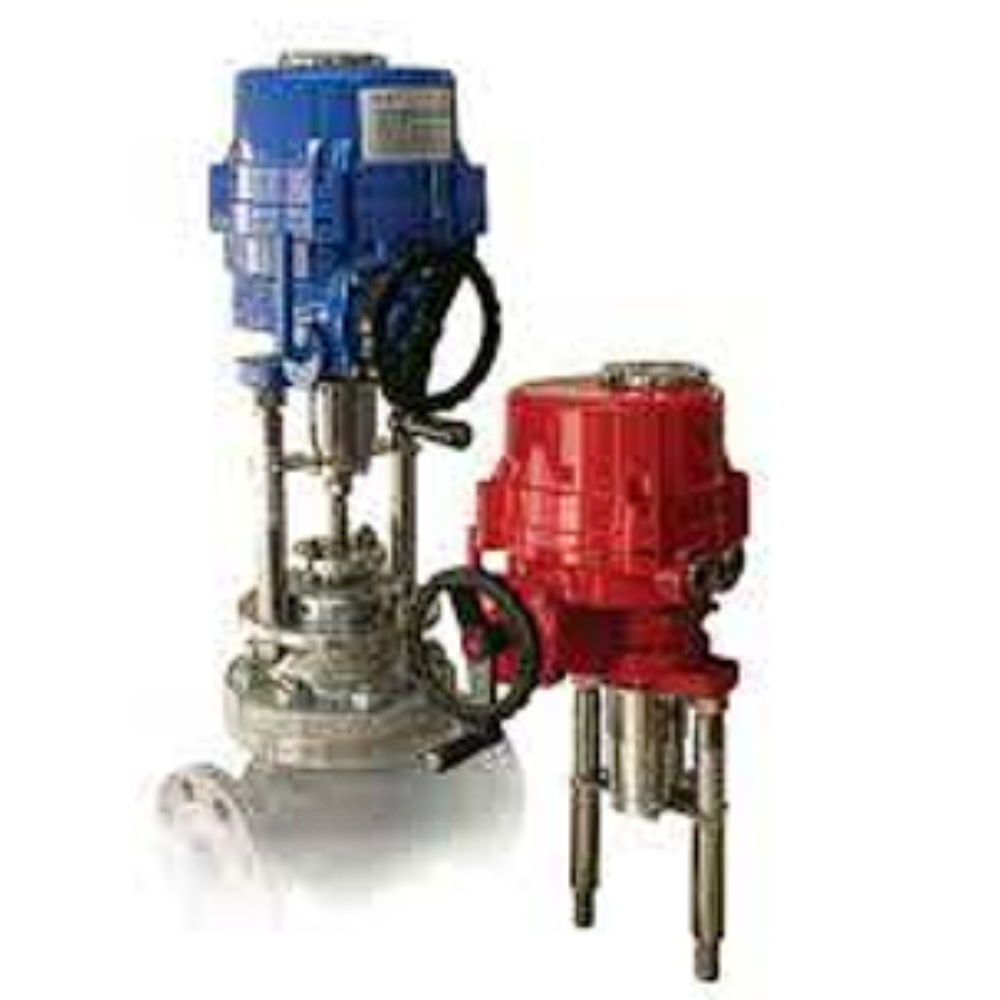

IQL series linear actuator has been developed for a wide range of linear applications and to service reliable performance, long trouble free operation, more flexibility and maximized ability to integrate fully into sophisticated control system.

PDS series pneumatic actuators are designed using Scotch-Yoke technology from PDS 50 to the largest of PDS 200. Scotch-Yoke technology is well-known to all users as the most suitable actuator mechanism for valve and damper operation as it produces higher torque at both end positions
Specification of PDS actuators follow international standards for faster and easier mounting of accessories like solenoid valves, limit switches, positioners and etc.
Features:
• Ranges available are 10Nm through 4000Nm double acting, and 5Nm through 1900Nm spring return
• Suitable for temperature ranges from -20°C to +80°C (For higher and lower temperature applications, please consult us before placing order)
• Mounting dimensions follow ISO5211, DIN3337, NAMUR, VD/VDE3845 standards

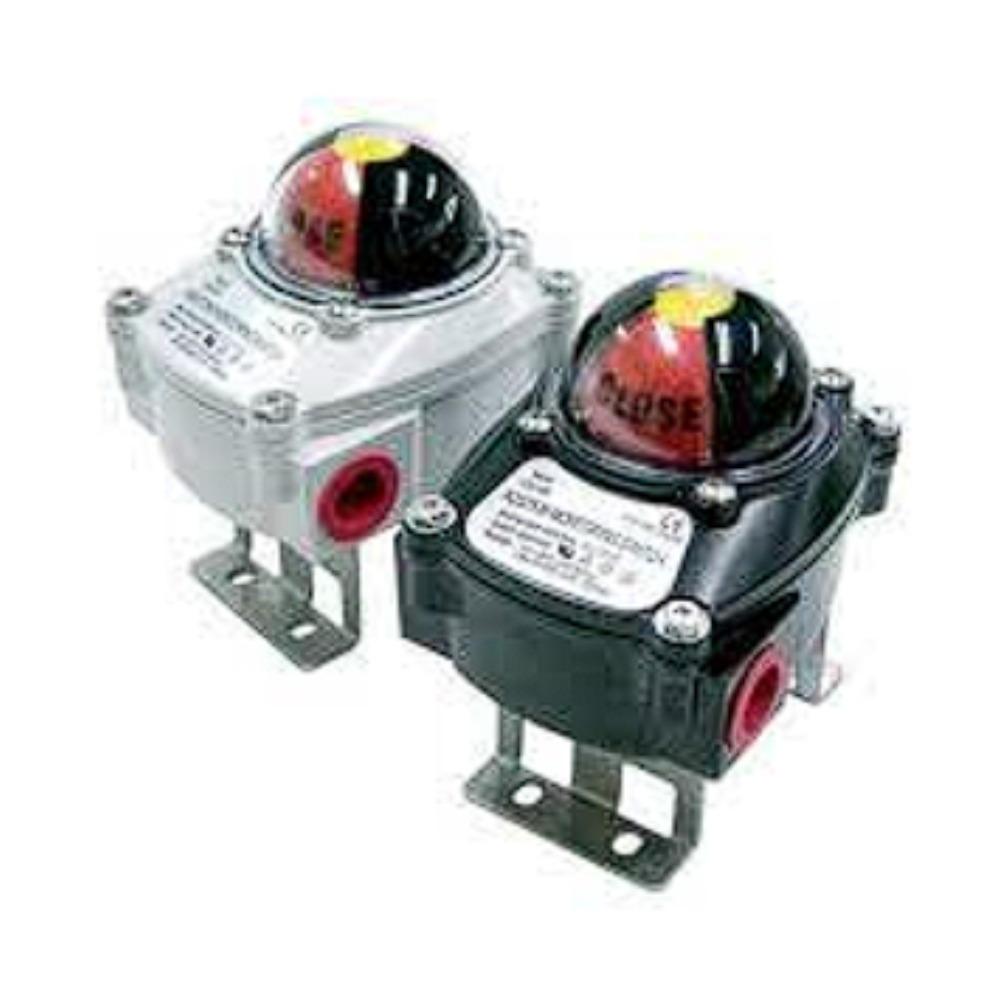

ITS series position monitoring switch boxes are primarily a rotary position indication device designed to integrate valve and NAMUR rotary pneumatic actuator with a variety of mounting options, internal switches or sensors and configurations

ITS 100 series (Weather proof)
ITS 100 series are specially designed suitable for small size pneumatic actuator and valves to reduce installation space but provides high performance by equipping a variety of switches and sensors

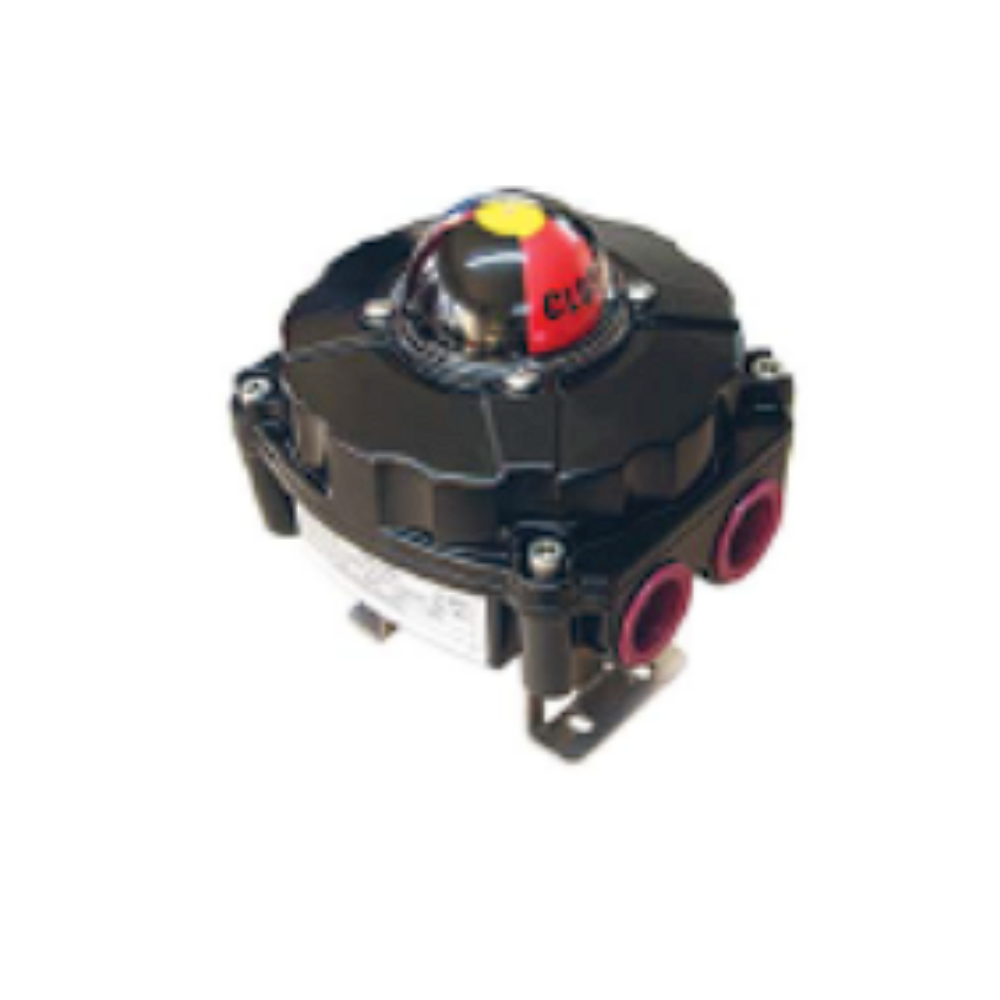

ITS 300 series are designed suitable for valve and actuators in hazardous area application, having compact but robust construction conforms to IEC60079-0: 2007, IEC60079-1: 2007, EN60079-0: 2006 and EN60079-1: 2007 also suitable in Zone 1 and 2 and ingress protection IP67. Standard aluminium housing provides reliable explosion proof performance

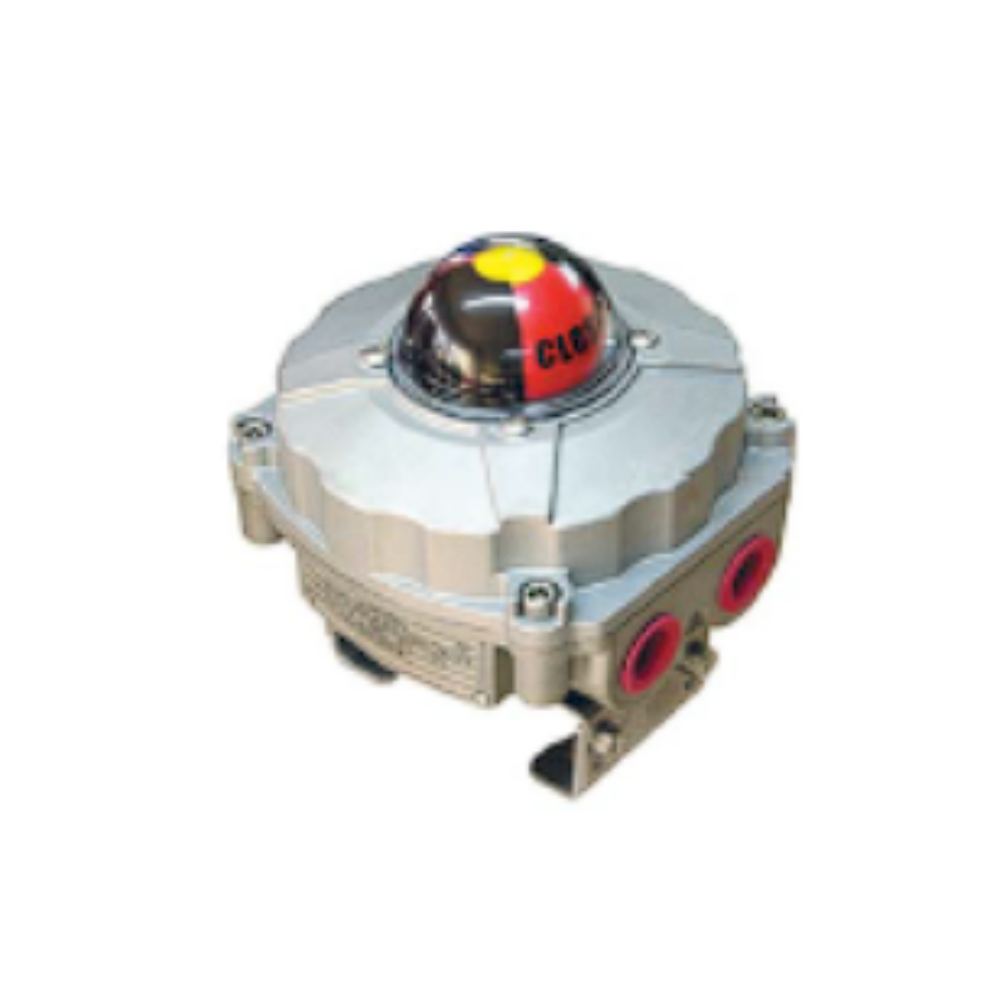

Special stainless steel housing (316L or Duplex) provide very high protection performance against extremely corrosive environment condition
Suitable for off-shore application
Other specification is same with ITS 300 series except for enclosure and coating

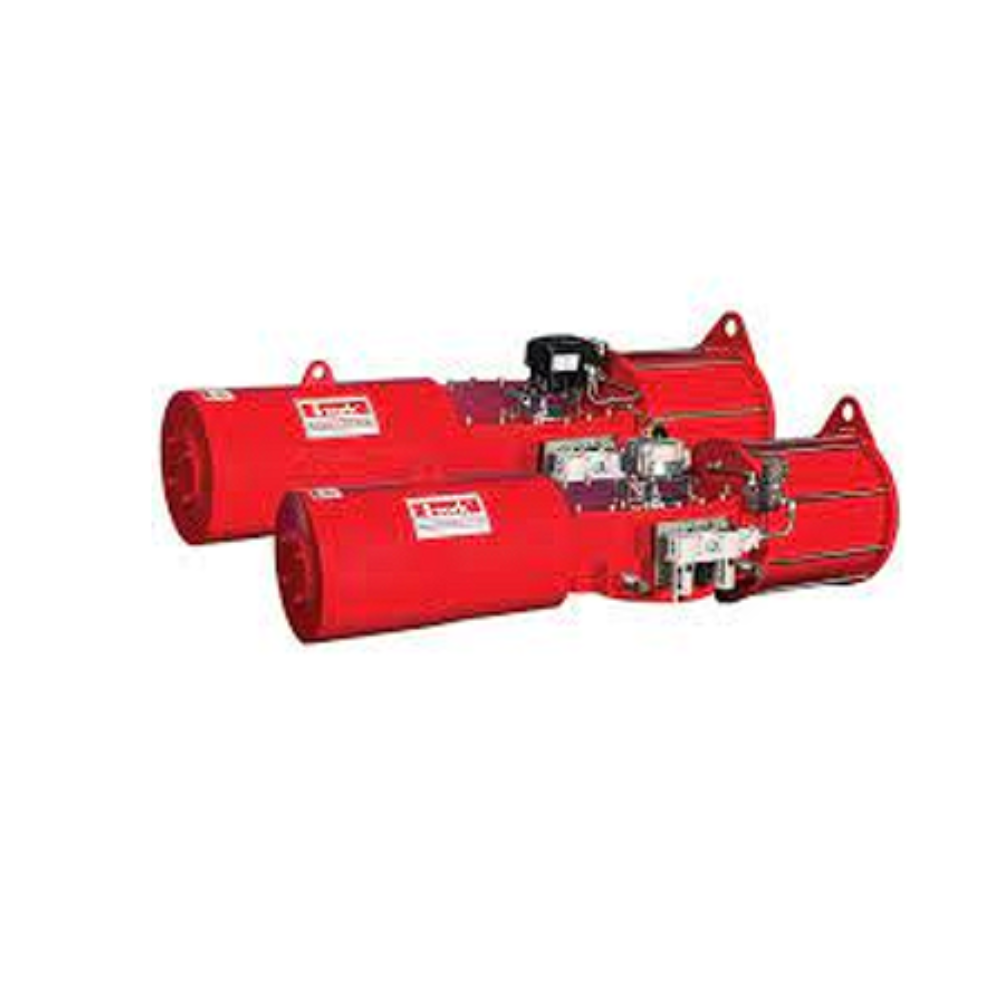

The IS & IC series of Heavy Duty scotch yoke actuators are designed to suit a wide ranges of valves and damper applications and offer a wide range of torques to enable operation of ball, butterfly, plug valves and dampers or any devices that requires a quarter turn operation for on-off or modulating services.

IS series has a symmetrical design yoke that produces maximum toque at both ends of the 90° cycle

IC series has a canted design yoke that produces maximum torque at either the close or open end

Both series of actuators have a complete range of options & accessories for control and monitoring, including manual handwheel (Jackscrew), Hydraulic Overrides, Declutch Gearboxes,
Limit Switches, Solenoid valves, Positioners and other control accessories

Standard IS & IC series actuators are provided with below features:
• Two years standard warranty
• IP66 for water ingress protection and corrosion resistance
• Interchangeable modular construction : an advantage for inventory, service, maintenance
• Standard operating pressure: 40 to 100psi (2.8 to 7 bar)
• Standard operating temperature: -20°C to +80°C with high and low temperature optional trims available
• Mounting dimension to meet with ISO5211

Optional:
• Different temperature range: -30°C to +100°C
• Different pressure range: Max. 10 bar
• Manual operation: Hydraulic or Handwheel (jackscrew), Declutchable gear box
• Different mounting dimension: MSS-SP101
