Ningbo Jingcheng Technology Co., Ltd. was established in year 2002 and is a national high-tech company. Our company products had conformed to high-quality standards: GB/T 778 (1~5)- 2018 “ Drinking cold water meter and hot water meter” , GB/T3623-2018 “ Water meter input and output protocol and electronic interface”, CJ/T133-2012 “IC card one of the standard-setting units such as Cold Water Meter, CJT241-2007 Purified Drinking Water Meter and G/T162-2017 Remote Meter Reading System for Civil Buildings.
In addition, our company has fulfilled ISO9001: 2015 quality management, ISO 14001: 2015 environmental management, ISO 45001: 2018 occupational health and safety management, GB/T 29490-201 3 intellectual property management, ISO 10012-2003 measurement management and other system certifications.

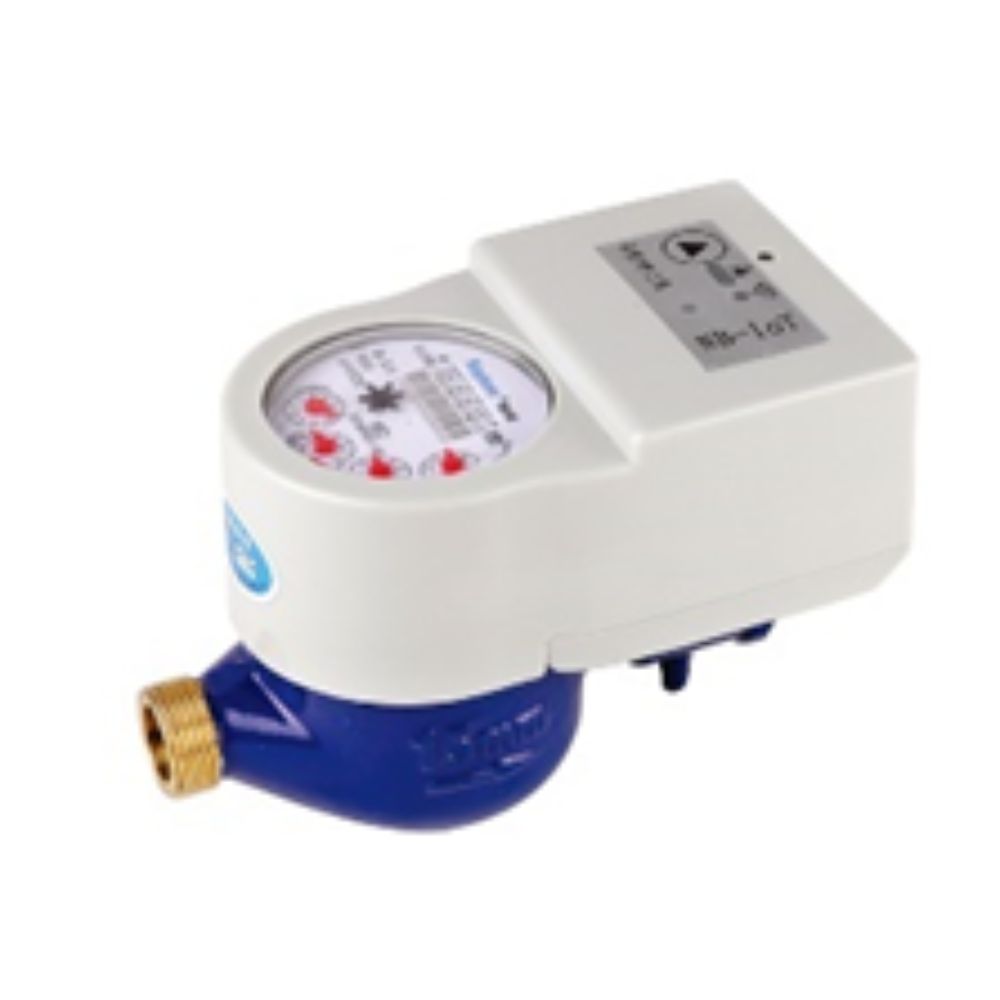

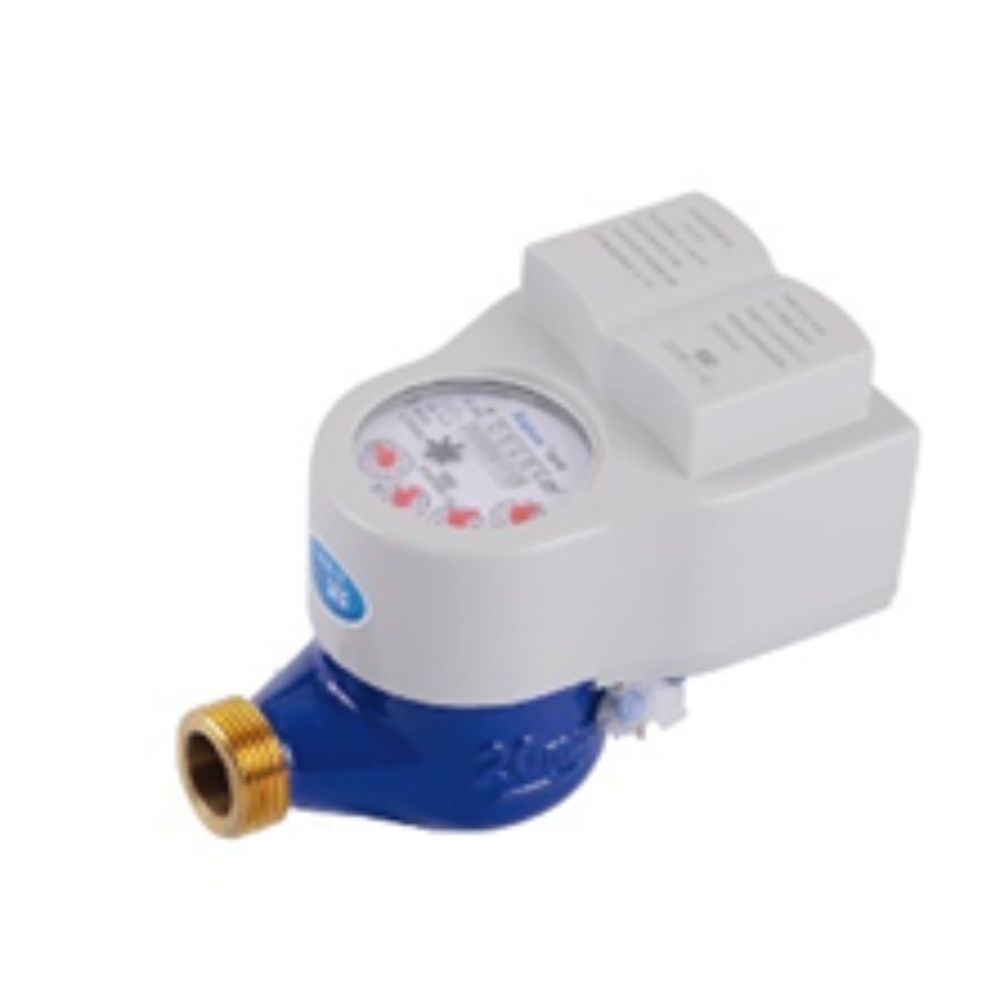

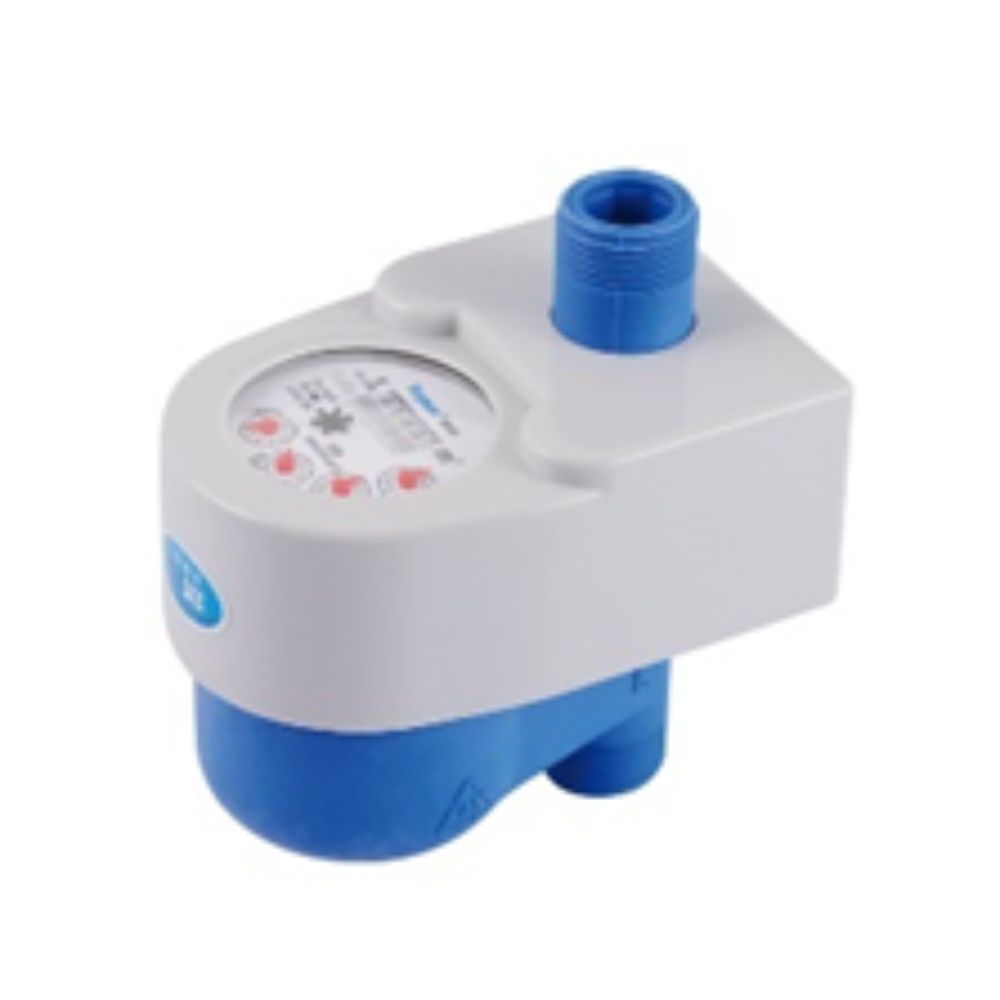

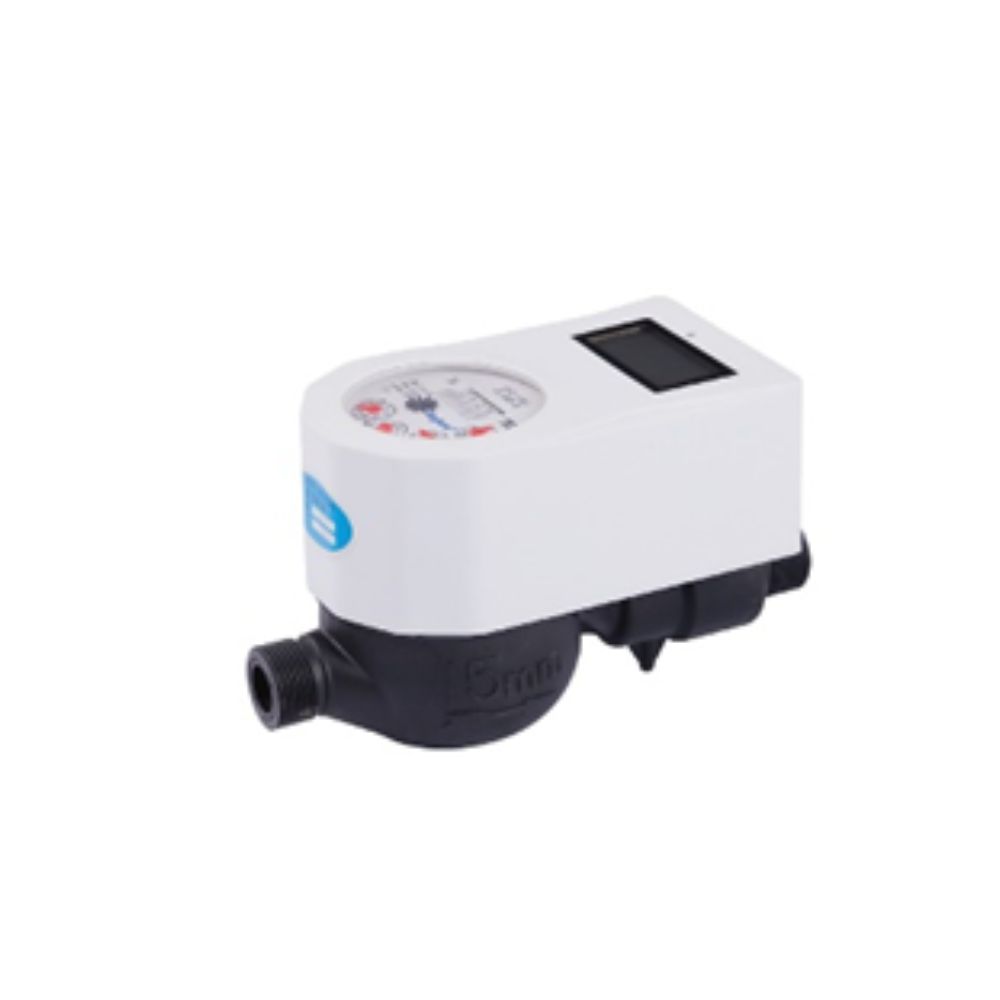

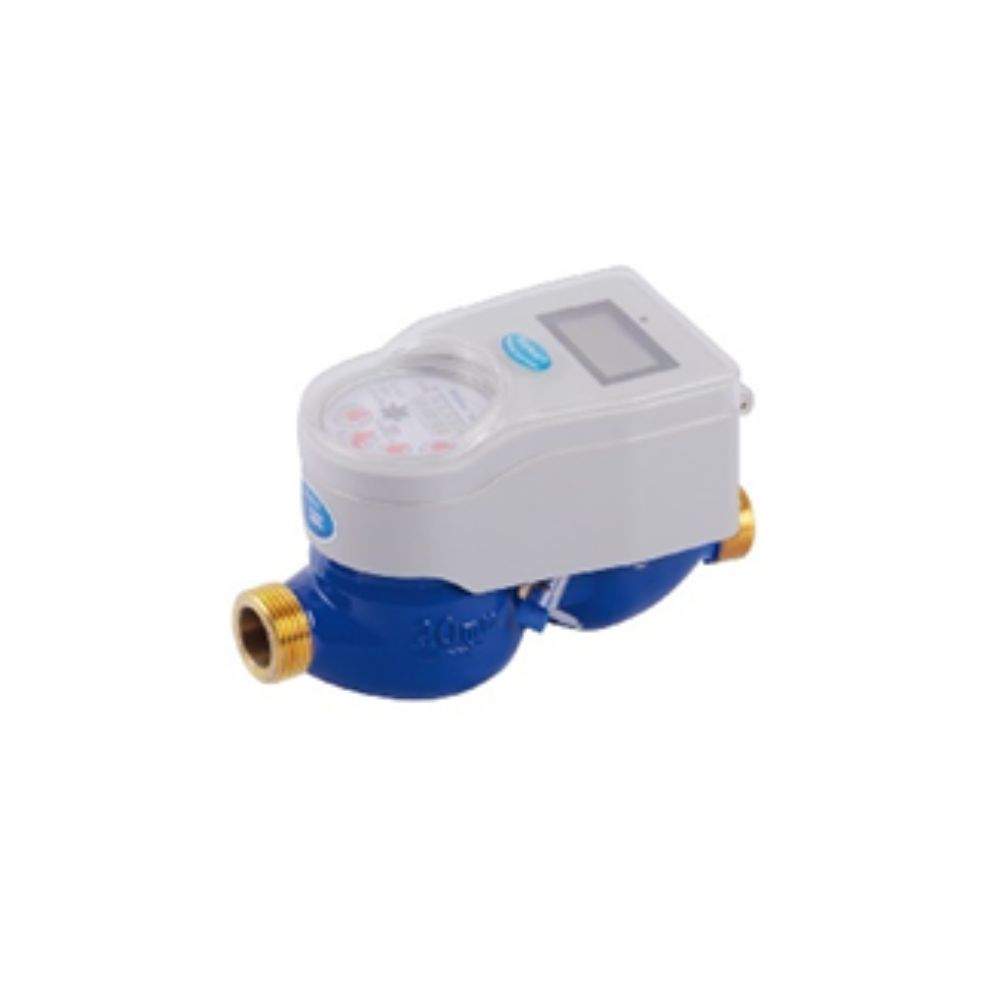

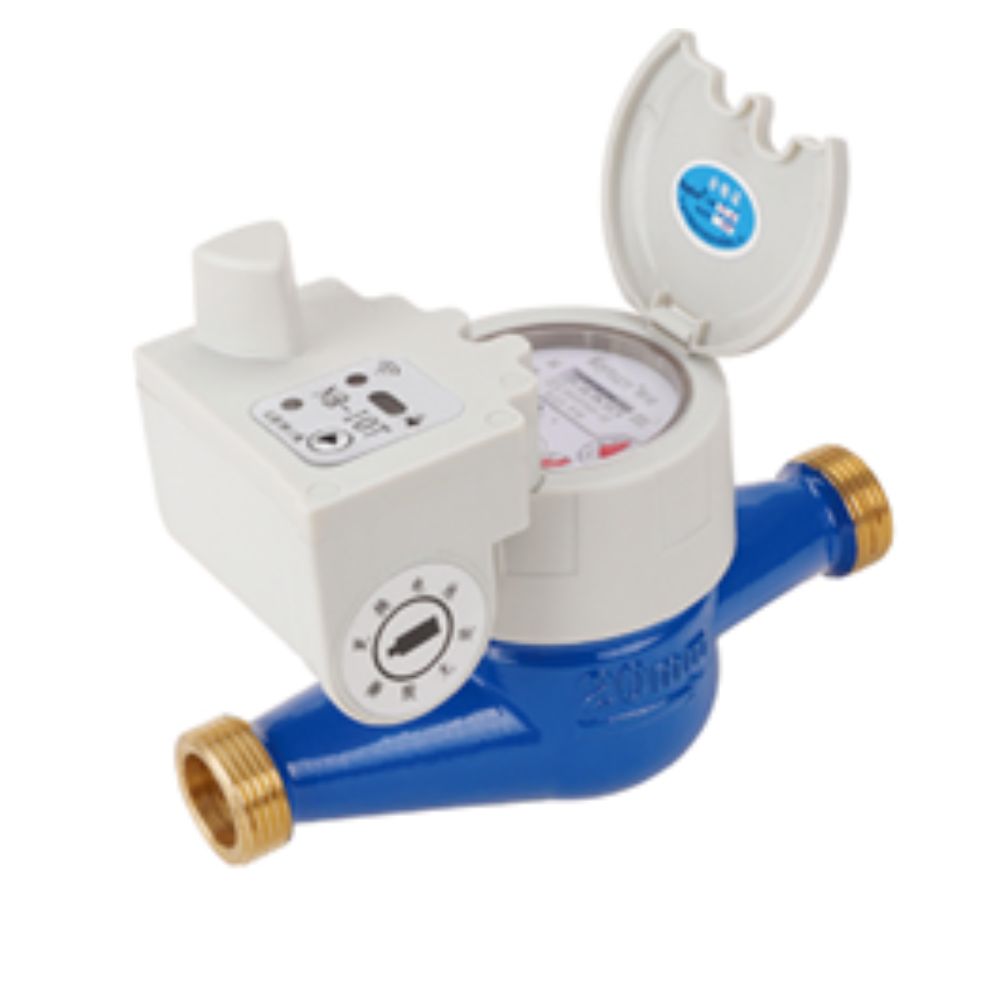

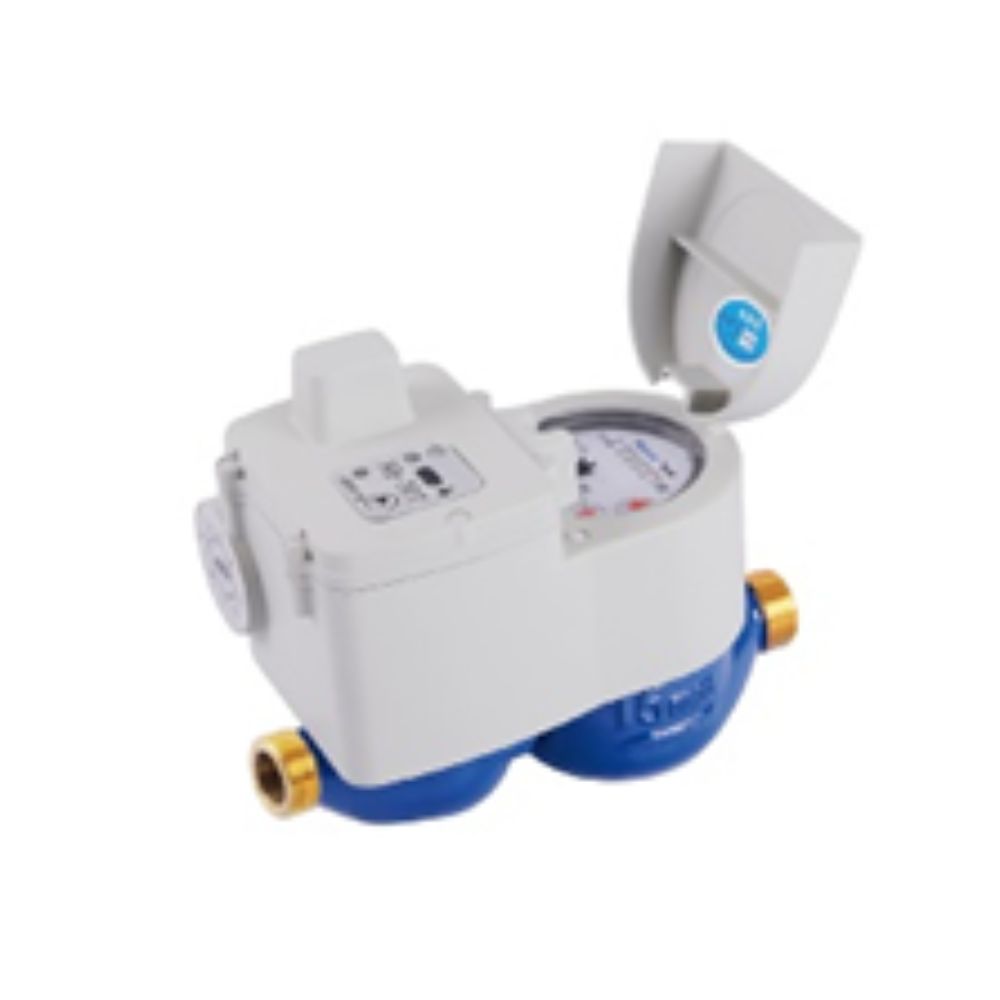

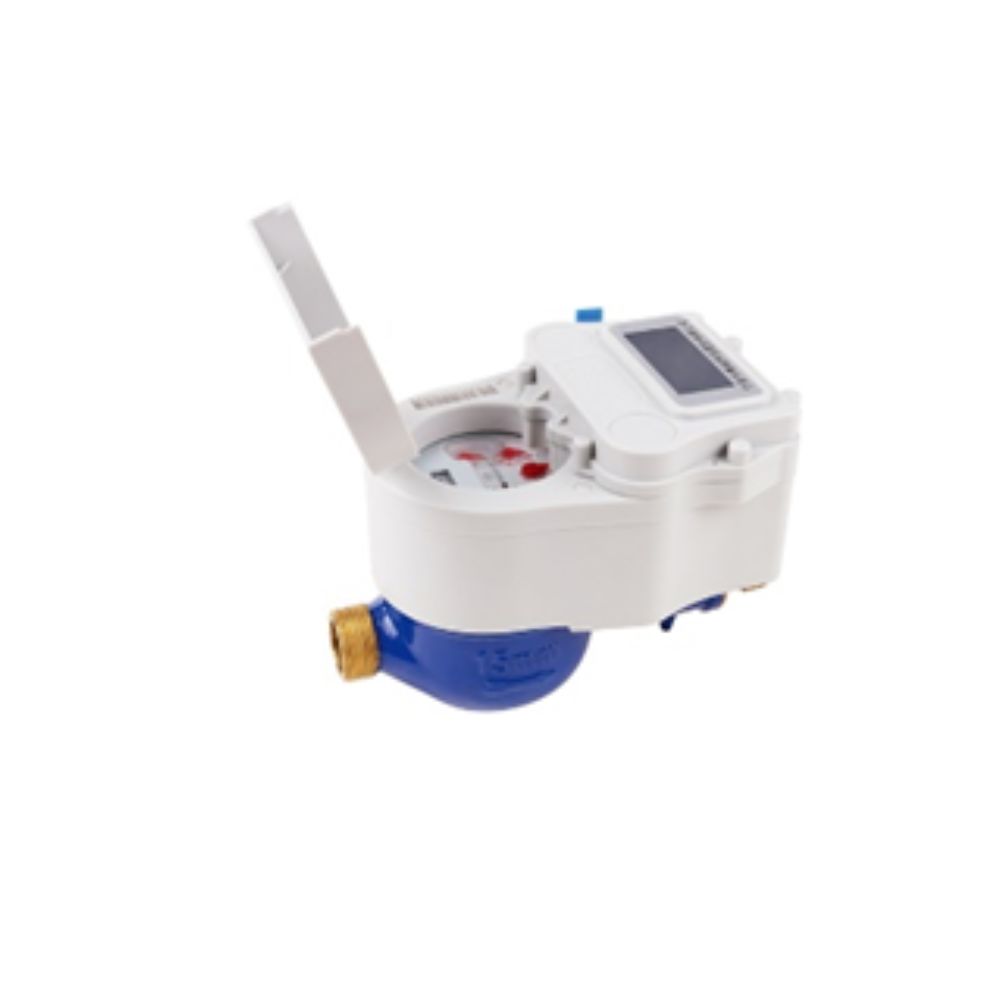

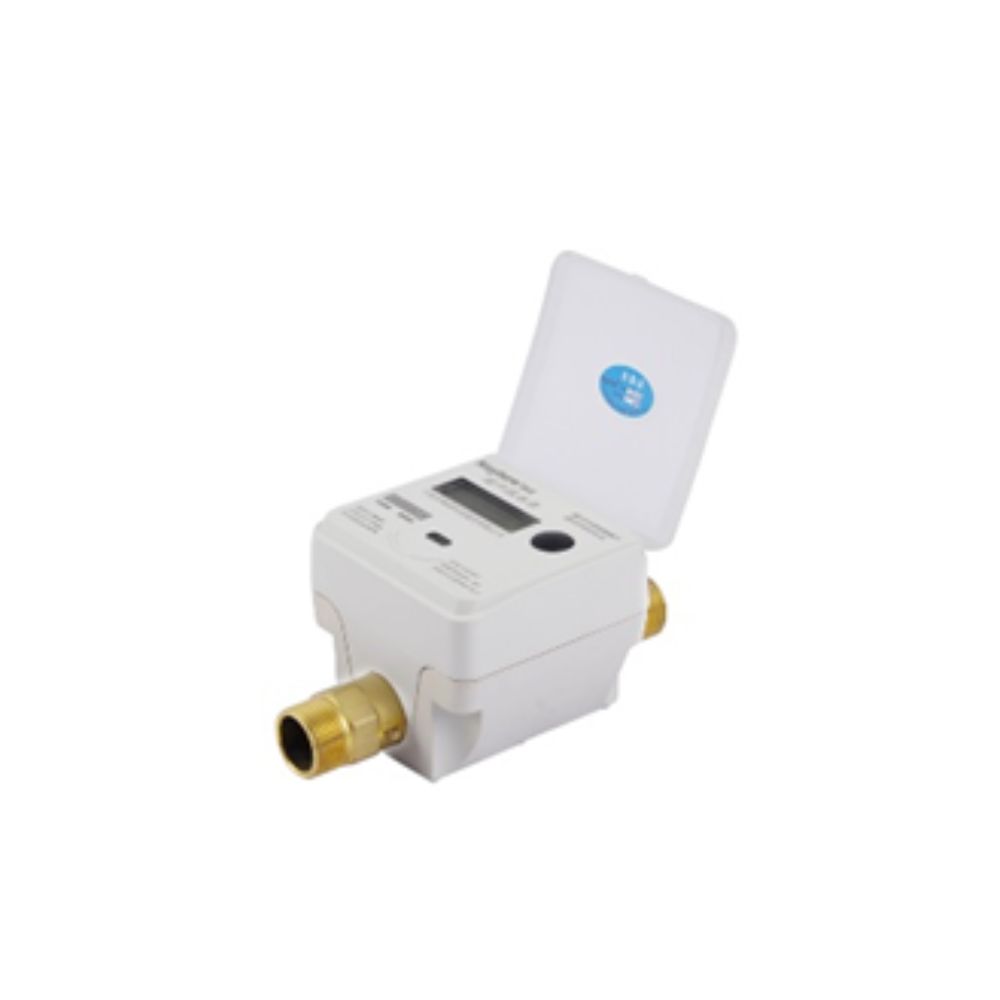

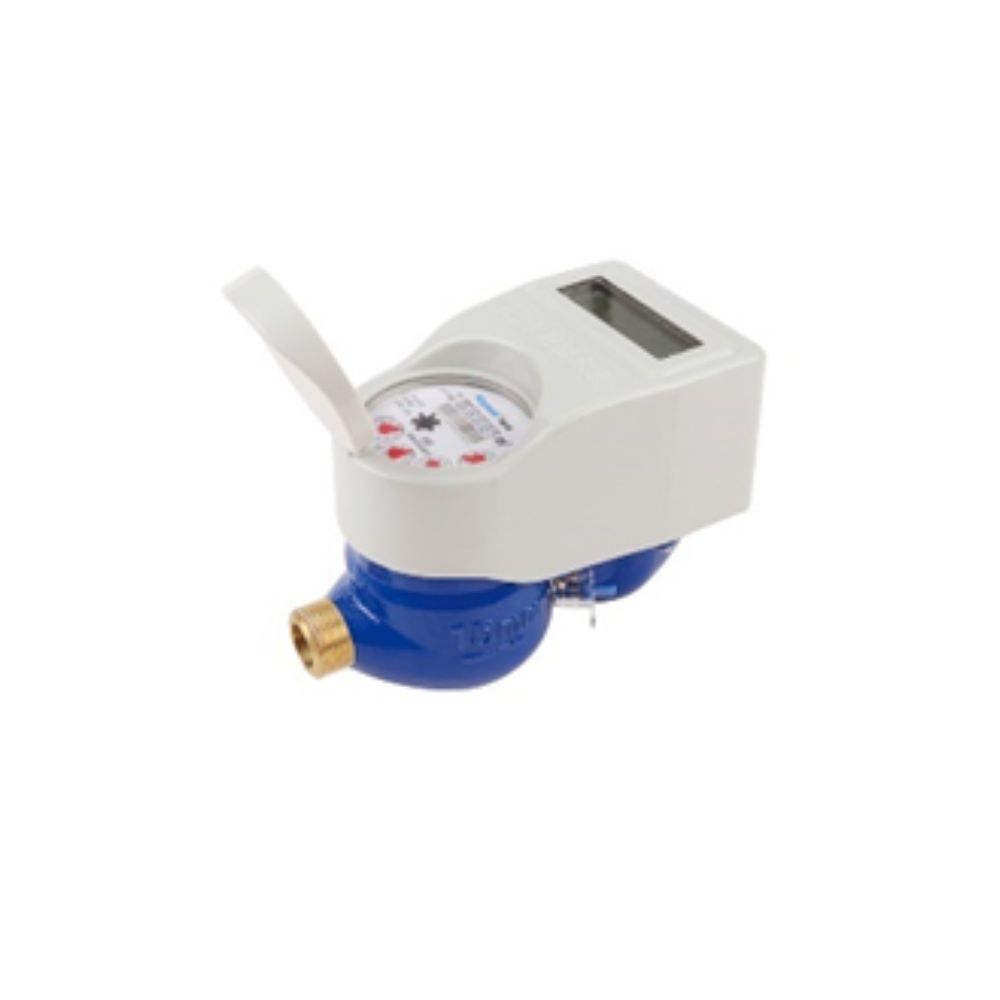

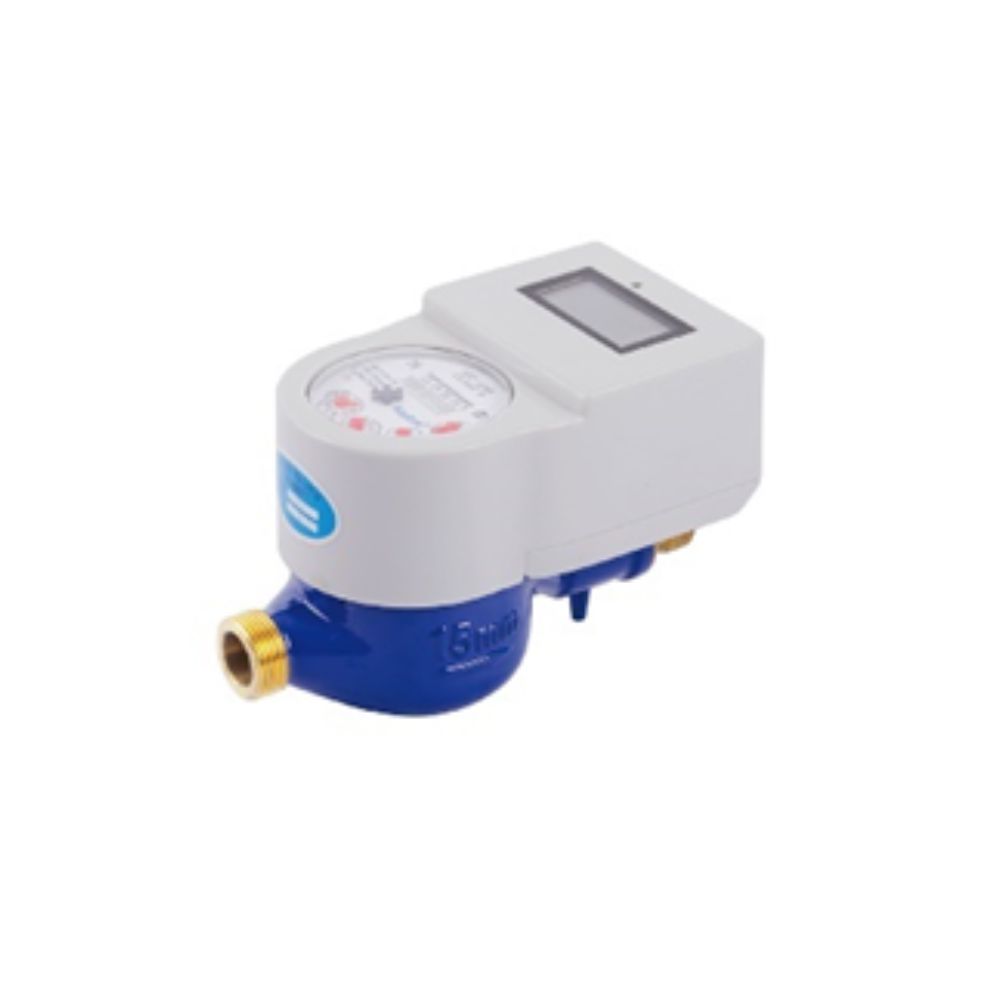

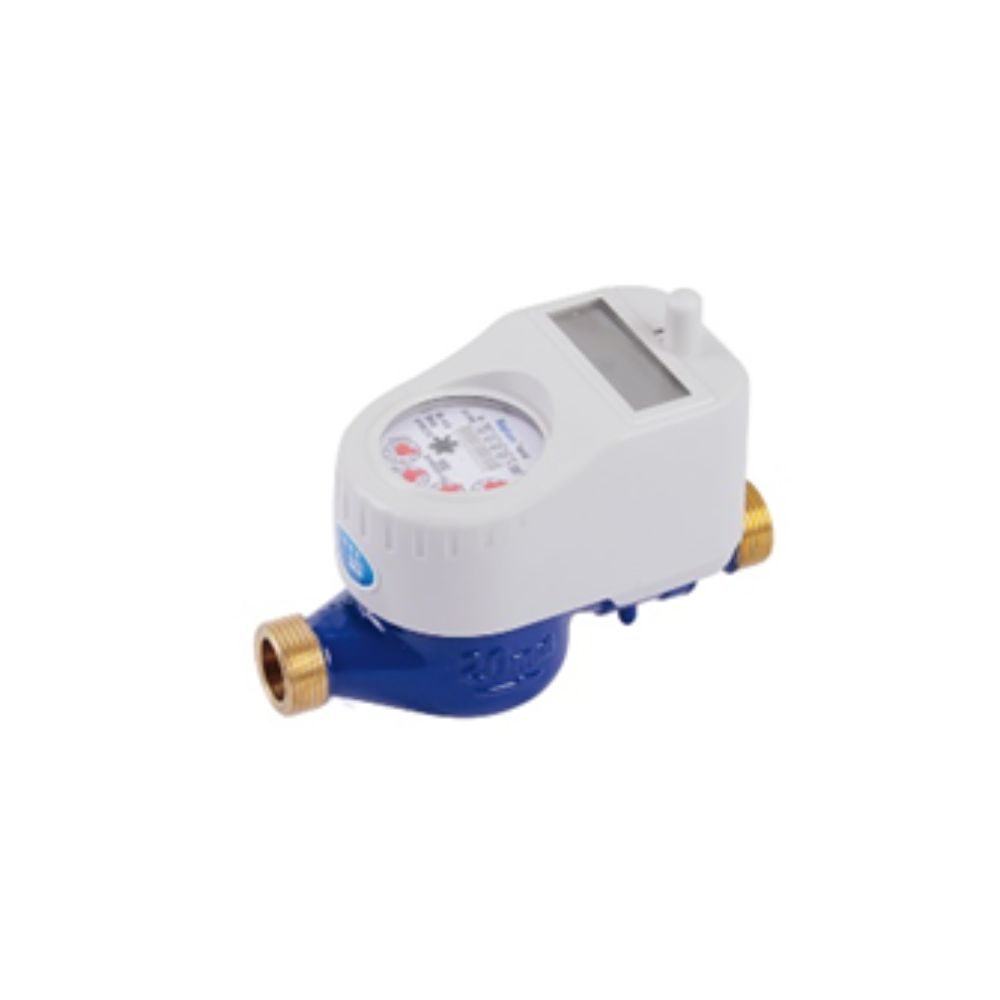

A. IoT Water meter Series

This series of products is an electromechanical separated IoT water meter, which can separate the electronic device (data sampling, wireless transmission) and the mechanical water meter completely independently and realize the wireless upload of water volume information through the NB-IoT/ Lora network.

Performance characteristics
• Multi-flow rotor type: adopts domestic mainstream metering structure
• Liquid-sealed movement : High sensitivity, special liquid encapsulation of the character wheel window can keep the reading permanently clear
• Dry core : central magnetic drive, anti-magnetic interference, good stability, strong anti-freezing ability and permanent clear reading.
• Electromechanical separation: independent cavity, replaceable
• The signal is stable and reliable: the new NB-IoT/ LoRa wireless data transmission technology is adopted
• Electronic sampling: sampling 1L, 10L or 100L
• Optional materials: ductile iron, engineering plastics, copper, stainless steel
• Environmental level: Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class 2

Type	LXSW-15W	LXSW-20W
Total Length	260mm	295mm
Length	165mm	190mm
Width	90mm	90mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	25μA	Non-magnetic	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	15μA	Non-magnetic	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	15mm	20mm
Q4m3/h	3.125	5
Q3m3/h	2.5	4
R80	50	80
Demarcation flow (Q2) R100	40	64
R160	25	40
R80	31.25	50
Demarcation flow (Q1) R100	25	40
R160	15.625	25
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Product Specifications

Type	LXSW-15W	LXSW-20W
Total Length	260mm	295mm
Length	165mm	190mm
Width	90mm	90mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	25μA	Non-magnetic	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	15μA	Non-magnetic	B1,B2, B5,B8, NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999


            Specification
            Details

            Model
            D3/6/942X Soft Sealing Double Eccentric Flange Butterfly Valve

            Diameter (DN)
            100 to 1200

            Pressure (PN)
            10/16

Specification	Details
Model	D3/6/942X Soft Sealing Double Eccentric Flange Butterfly Valve
Diameter (DN)	100 to 1200
Pressure (PN)	10/16

Product Specifications

Type	LXSW-15W	LXSW-20W
Total Length	260mm	295mm
Length	165mm	190mm
Width	90mm	90mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	25μA	Non-magnetic	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	15μA	Non-magnetic	B1,B2, B5,B8, NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

Product Specifications

Type	LXSW-15W	LXSW-20W
Total Length	260mm	295mm
Length	165mm	190mm
Width	90mm	90mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	25μA	Non-magnetic	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	15μA	Non-magnetic	B1,B2, B5,B8, NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

Type	LXSGW-15W	LXSGW-20W
Total Length	260mm	295mm
Length	165mm	190mm
Width	85mm	85mm
Height	155mm	155mm
Connection Thread	G3/4B	G1B
Weight	1kg	1.2kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	15mm	20mm
Q4m3/h	3.125	5
Q3m3/h	2.5	4
R80	50	80
Demarcation flow (Q2) R100	40	64
R160	25	40
R80	31.25	50
Demarcation flow (Q1) R100	25	40
R160	15.625	25
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Type	LXSGW-15W	LXSGW-20W
Total Length	275mm	295mm
Length	180mm	190mm
Width	105mm	105mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.4kg	1.6kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	15mm	20mm
Q4m3/h	3.125	5
Q3m3/h	2.5	4
R80	50	80
Demarcation flow (Q2) R100	40	64
R160	25	40
R80	31.25	50
Demarcation flow (Q1) R100	25	40
R160	15.625	25
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Type	LXSGW-15W	LXSGW-20W	LXSGW-25W
Total Length	260mm	295mm	345mm
Length	165mm	190mm	225mm
Width	100mm	105mm	100mm
Height	130mm	130mm	130mm
Connection Thread	G3/4B	G1B	G1-1/4
Weight	1.1kg	1.3kg	1.5kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	15mm	20mm
Q4m3/h	3.125	5
Q3m3/h	2.5	4
R80	50	80
Demarcation flow (Q2) R100	40	64
R160	25	40
R80	31.25	50
Demarcation flow (Q1) R100	25	40
R160	15.625	25
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Product Specifications

Type	LXSGW-15W	LXSGW-20W
Total Length	275mm	295mm
Length	180mm	190mm
Width	105mm	105mm
Height	150mm	150mm
Connection Thread	G3/4B	G1B
Weight	1.4kg	1.6kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

Product Specifications

Type	LXSGW-15W	LXSGW-20W	LXSGW-25W
Total Length	260mm	295mm	345mm
Length	165mm	190mm	225mm
Width	100mm	105mm	100mm
Height	130mm	130mm	130mm
Connection Thread	G3/4B	G1B	G1-1/4
Weight	1.1kg	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

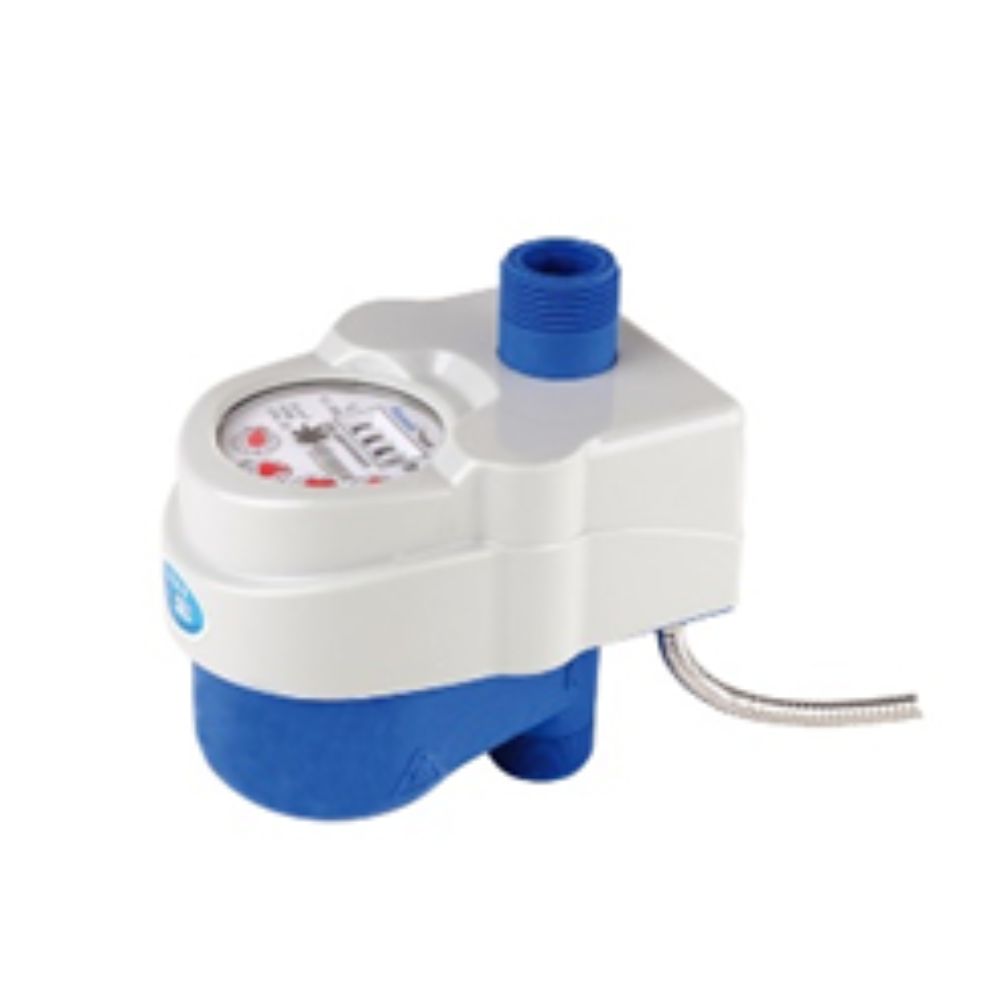

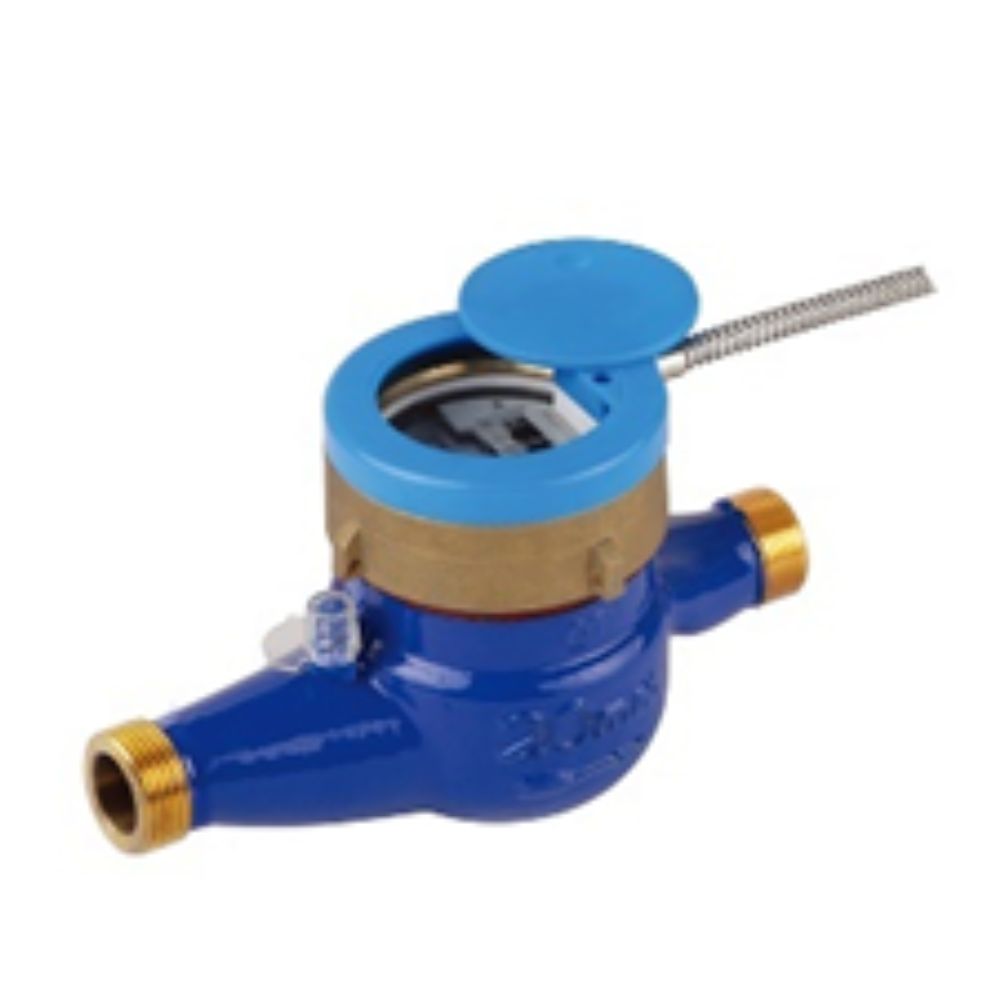

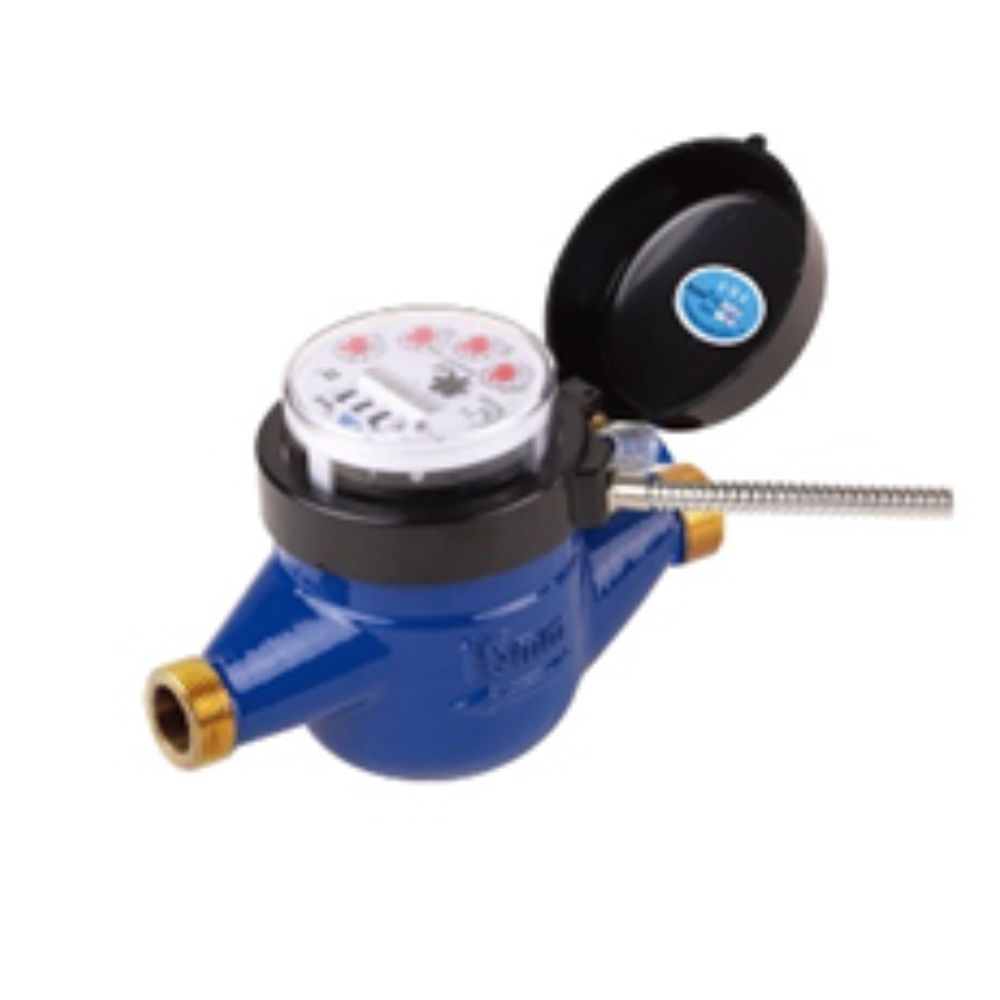

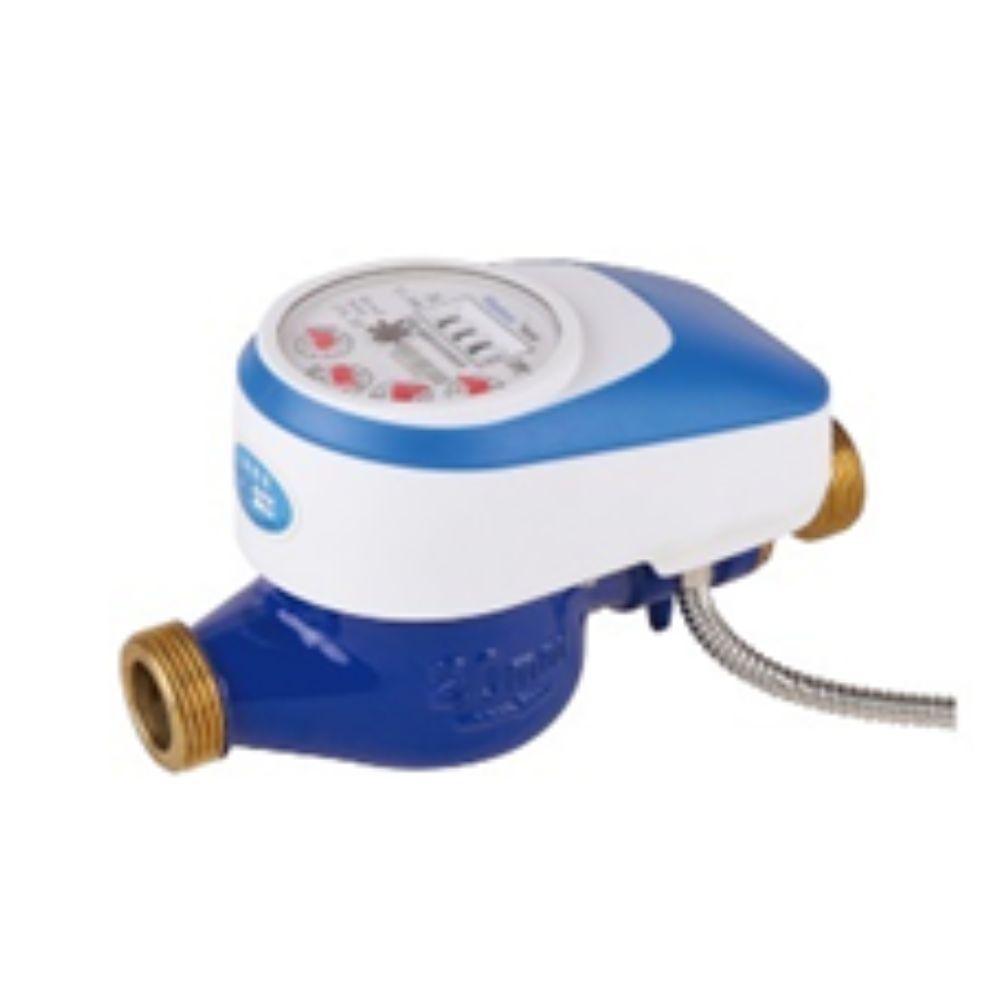

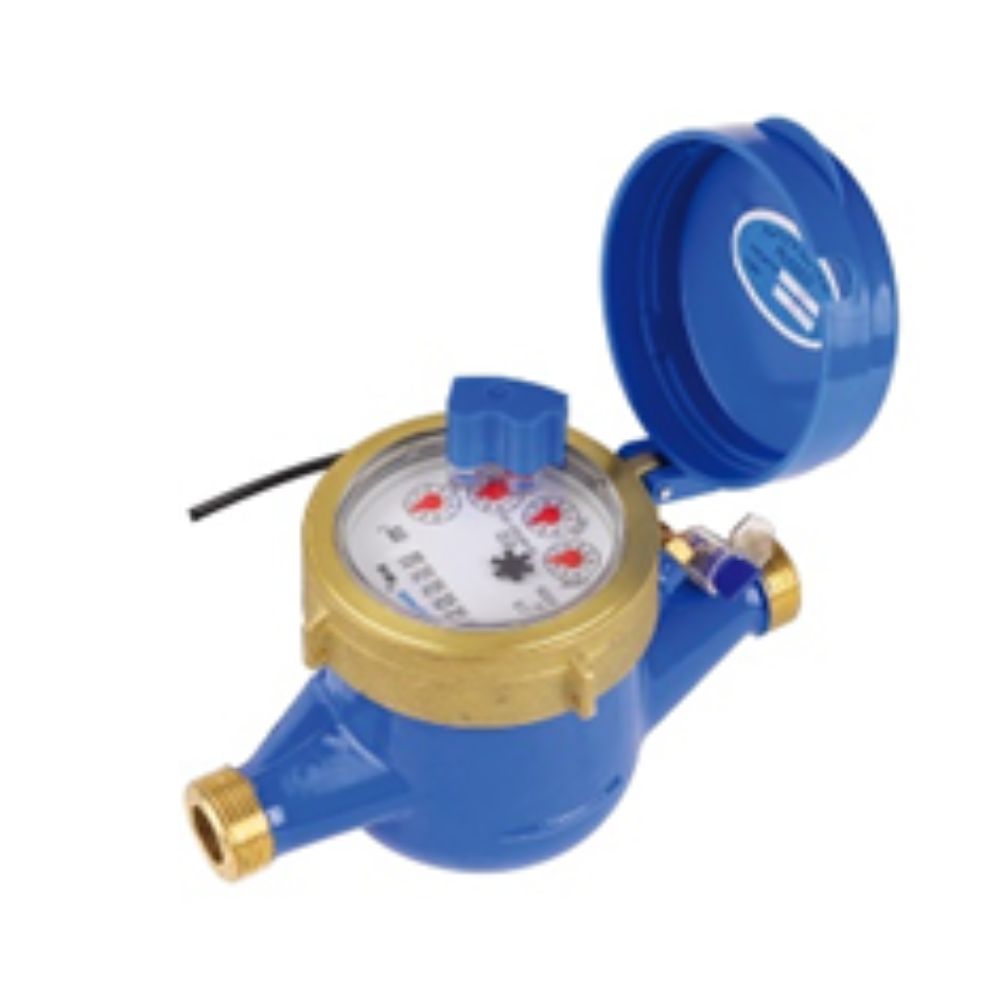

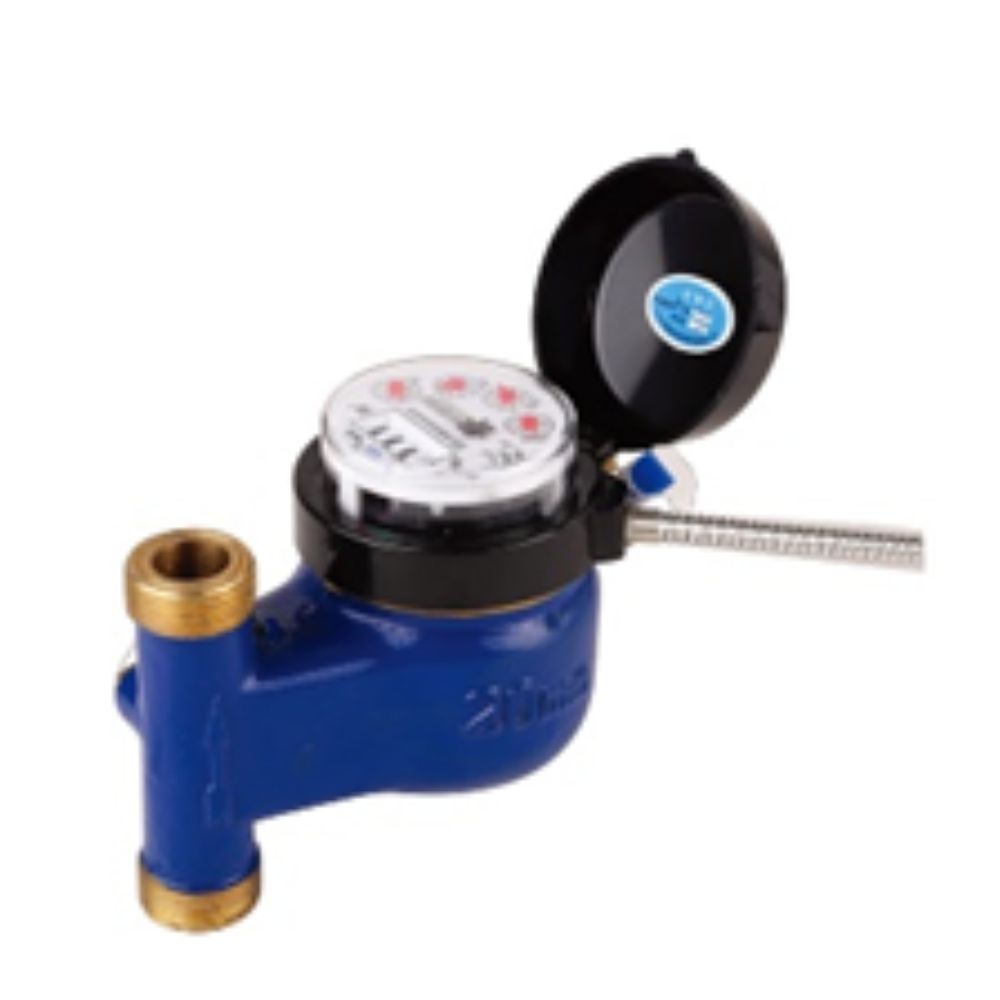

B. Wired Remote Water Meter Series

This series of products have high reliability, strong anti-interference ability, power saving and durable meter reading system. The meter reading system is a new type of remote centralized reading, charging, monitoring and management system deigned for the water supply department. It has three floors of sub-meters, collectors (concentrators) and management centers.

Performance Characteristics
• Multi-flow rotor type: adopts domestic mainstream metering structure
• Liquid-sealed movement: high sensitivity; special liquid encapsulation of the character wheel window can keep the reading permanently clear
• Dry core: Central magnetic transmission, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading
• Bus communication mode: RS-485 or M-BUS
• No need for power supply for daily work, only bus power supply when reading meter, waterproof, moisture-proof and light interference proof.
• Waterproof, moisture-proof and light interference proof
• Material optional: ductile iron, engineering plastics, copper, stainless steel
• Optional sampling method: photoelectric, pulse
• Environmental rating : Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class 2

Product Specifications

Type	LXSGW-15W	LXSGW-20W
Total Length	285mm	300mm
Length	190mm	195mm
Width	100mm	100mm
Height	160mm	160mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

B. Wired Remote Water Meter Series

This series of products have high reliability, strong anti-interference ability, power saving and durable meter reading system. The meter reading system is a new type of remote centralized reading, charging, monitoring and management system deigned for the water supply department. It has three floors of sub-meters, collectors (concentrators) and management centers.

Performance Characteristics
• Multi-flow rotor type: adopts domestic mainstream metering structure
• Liquid-sealed movement: high sensitivity; special liquid encapsulation of the character wheel window can keep the reading permanently clear
• Dry core: Central magnetic transmission, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading
• Bus communication mode: RS-485 or M-BUS
• No need for power supply for daily work, only bus power supply when reading meter, waterproof, moisture-proof and light interference proof.
• Waterproof, moisture-proof and light interference proof
• Material optional: ductile iron, engineering plastics, copper, stainless steel
• Optional sampling method: photoelectric, pulse
• Environmental rating : Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class 2

Product Specifications

Type	LXSGW-15W	LXSGW-20W
Total Length	285mm	300mm
Length	190mm	195mm
Width	100mm	100mm
Height	160mm	160mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of the nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)

Nominal Caliber (DN)	15mm	20mm
Q4 (m³/h)	3.125	5
Q3 (m³/h)	2.5	4
Demarcation Flow (Q2) - R80	50	80
Demarcation Flow (Q2) - R100	40	64
Demarcation Flow (Q2) - R160	25	40
Demarcation Flow (Q1) - R80	31.25	50
Demarcation Flow (Q1) - R100	25	40
Demarcation Flow (Q1) - R160	15.625	25
Minimum Reading (m³/h)	0.00001	0.00001
Maximum Reading (m³/h)	99999.9999	99999.9999

Type	LXSGW-15W	LXSGW-20W
Total Length	285mm	300mm
Length	190mm	195mm
Width	100mm	100mm
Height	160mm	160mm
Connection Thread	G3/4B	G1B
Weight	1.3kg	1.5kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	15mm	20mm
Q4m3/h	3.125	5
Q3m3/h	2.5	4
R80	50	80
Demarcation flow (Q2) R100	40	64
R160	25	40
R80	31.25	50
Demarcation flow (Q1) R100	25	40
R160	15.625	25
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Type	LXSGW-20W	LXSGW-25W
Total Length	260mm	295mm
Length	165mm	175mm
Width	110mm	110mm
Height	150mm	150mm
Connection Thread	G1B	G1-1/4B
Weight	0.9kg	1kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Communication Methods	The Static Current	Sampling Methods	Working Frequency Band	Transmission Power	Reception Sensitivity
LoRa	20μA	Hall, dry reed pipe	470~510MHz adjustable	< 20dBm	-136±1 dBm
NB-IoT	10μA	Hall, dry reed pipe	B1,B2,B5,B8,NB-IoT adjustable	< 23dBm	-131±1 dBm

Nominal Caliber (DN)	20mm	25mm
Q4m3/h	5	7.875
Q3m3/h	4	6.3
R80	80	126
Demarcation flow (Q2) R100	64	100.8
R160	40	63
R80	50	78.75
Demarcation flow (Q1) R100	40	63
R160	25	39.375
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Type	LXSGY-15E	LXSGY-20E	LXSGY-25E	LXSGY-32E
Total Length	260mm	295mm	345mm	355mm
Length	165mm	190mm	225mm	230mm
Width	90mm	90mm	90mm	105mm
Height	120mm	120mm	120mm	120mm
Connection Thread	G3/4	G1	G1-1/4	G1-1/2
Weight	1kg	1.2kg	1.7kg	2.2kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Working Voltage	Working Temperature	Working Current	Communication Interface
DC9-15V (RS485) / DC24-36V (M-BUS)	-10~45°C	≤9Ma	RS-485; M-BUS

Nominal Caliber (DN)	15mm	20mm	25mm
Q4m3/h	3.125	5	7.875
Q3m3/h	2.5	4	6.3
R80	50	80	126
Transitional flow rate (Q2) R100	40	64	100.8
R160	25	40	63
R80	31.25	50	78.75
Minimum flow rate (Q1) R100	25	40	63
R160	15.625	25	39.375
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999

Nominal Diameter (DN)	Q3/Q1	Q4 m3/h	Q3 m3/h	Transitional Flow Rate Q2 L/h	Minimum Flow Q1 L/h	Minimum Reading m3/h	Maximum Reading m3/h
R80				200	125
32mm	R100	12.5	10	160	100	0.00001	99999.9999
R160				100	62.5

C. Prepaid Water Meter Series

The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.

Performance Characteristics
• The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.
• Liquid-sealed movement :High sensitivity, special liquid encapsulation of the character wheel window can keep the reading permanently clear.
• Dry core: Central magnetic drive, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading.
• Prepaid function, pay first, use later
• Support tiered water prices, one card with multiple meters
• Anti-magnetic interference function, low power consumption, long use time
• The enclosure protection grade is IP68
• Optional materials: ductile iron, engineering plastics , copper, stainless steel
• Environmental level: Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class II

Type	LXSY-15E	LXSY-20E	LXSY-25E
Total Length	260mm	295mm	345mm
Length	165mm	190mm	225mm
Width	95mm	95mm	110mm
Height	110mm	110mm	115mm
Connection Thread	G3/4	G1	G1-1/4
Weight	1kg	1.2kg	1.7kg

Note:

Total length includes the length of Nipple and nut (single length refers to the length of the water meter).
The size and weight of the product shall be subject to the physical object and the order requirements.

Working Voltage	Working Temperature	Working Current	Communication Interface
DC9-15V (RS485) / DC24-36V (M-BUS)	-10~45°C	≤9Ma	RS-485; M-BUS

Nominal Caliber (DN)	15mm	20mm	25mm
Q4m3/h	3.125	5	7.875
Q3m3/h	2.5	4	6.3
R80	50	80	126
Transitional flow rate (Q2) R100	40	64	100.8
R160	25	40	63
R80	31.25	50	78.75
Minimum flow rate (Q1) R100	25	40	63
R160	15.625	25	39.375
Minimum reading m3/h	0.00001
Maximum reading m3/h	99999.9999


      Type
      LXSGY-15E
      LXSGY-20E
      LXSGY-25E

      Total Length
      195mm
      210mm
      230mm

      Length
      100mm
      105mm
      110mm

      Width
      100mm
      100mm
      100mm

      Height
      115mm
      115mm
      115mm

      Connection Thread
      G3/4
      G1
      G1-1/4

      Weight
      1.5kg
      1.7kg
      1.8kg

        Note:

        1. Total length including the length of Nipple and nut (single length refers to the length of the water meter).

        2. The size and weight of the product shall be subject to the physical object and the order requirements.

Working Specifications

      Working Voltage
      Working Temperature
      Working Current
      Communication Interface

      DC9-15V(RS485)/DC24-36V(M-BUS)
      -10~45°C
      ≤9mA
      RS-485; M-BUS

Flow Rate Specifications

      Nominal Caliber (DN)
      15mm
      20mm
      25mm

      Q4m3/h
      3.125
      5
      7.875

      Q3m3/h
      2.5
      4
      6.3

      R80
      50
      80
      126

      Transitional flow rate (Q2)R100

      40
      64
      100.8

      R160
      25
      40
      63

      R80
      31.25
      50
      78.75

      Minimum flow rate (Q1)R100

      25
      40
      63

      R160
      15.625
      25
      39.375

      Minimum reading m3/h
      0.00001

      Maximum reading m3/h
      99999.9999

Type	LXSGY-15E	LXSGY-20E	LXSGY-25E
Total Length	195mm	210mm	230mm
Length	100mm	105mm	110mm
Width	100mm	100mm	100mm
Height	115mm	115mm	115mm
Connection Thread	G3/4	G1	G1-1/4
Weight	1.5kg	1.7kg	1.8kg
Note: 1. Total length including the length of Nipple and nut (single length refers to the length of the water meter). 2. The size and weight of the product shall be subject to the physical object and the order requirements.

Working Voltage	Working Temperature	Working Current	Communication Interface
DC9-15V(RS485)/DC24-36V(M-BUS)	-10~45°C	≤9mA	RS-485; M-BUS

C. Prepaid Water Meter Series

The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.

Performance Characteristics
• The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.
• Liquid-sealed movement :High sensitivity, special liquid encapsulation of the character wheel window can keep the reading permanently clear.
• Dry core: Central magnetic drive, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading.
• Prepaid function, pay first, use later
• Support tiered water prices, one card with multiple meters
• Anti-magnetic interference function, low power consumption, long use time
• The enclosure protection grade is IP68
• Optional materials: ductile iron, engineering plastics , copper, stainless steel
• Environmental level: Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class II


      Type
      LXSY-15E
      LXSY-20E
      LXSY-25E

      Total Length
      260mm
      295mm
      345mm

      Length
      165mm
      190mm
      225mm

      Width
      90mm
      90mm
      90mm

      Height
      118mm
      118mm
      118mm

      Connection Thread
      G3/4
      G1
      G1-1/4

      Weight
      1.2kg
      1.3kg
      1.5kg

        Note:

        1. Total length including the length of Nipple and nut (single length refers to the length of the water meter).

        2. The size and weight of the product shall be subject to the physical object and the order requirements.

Working Specifications

      Working Voltage
      Working Temperature
      Working Current
      Communication Method

      DC9-15V(RS485)/DC24-36V(M-BUS)
      -10~45°C
      ≤9mA
      RS-485; M-BUS

Flow Rate Specifications

      Nominal Caliber (DN)
      15mm
      20mm
      25mm

      Q4m3/h
      3.125
      5
      7.875

      Q3m3/h
      2.5
      4
      6.3

      R80
      50
      80
      126

      Transitional flow rate (Q2)R100

      40
      64
      100.8

      R160
      25
      40
      63

      R80
      31.25
      50
      78.75

      Minimum flow rate (Q1)R100

      25
      40
      63

      R160
      15.625
      25
      39.375

      Minimum reading m3/h
      0.00001

      Maximum reading m3/h
      99999.9999


      Type
      LXSGY-20W
      LXSGY-25W

      Total Length
      260mm
      295mm

      Length
      165mm
      175mm

      Width
      110mm
      110mm

      Height
      150mm
      150mm

      Connection Thread
      G1B
      G1-1/4

      Weight
      1.5kg
      1.6kg

        Note:

        1. Total length including the length of Nipple and nut (single length refers to the length of the water meter).

        2. The size and weight of the product shall be subject to the physical object and the order requirements.

Working Specifications

      Working Voltage
      Working Temperature
      Working Current
      Communication Method

      DC9-15V(RS485)/DC24-36V(M-BUS)
      -10~45°C
      ≤9mA
      RS-485; M-BUS

Flow Rate Specifications

      Nominal Caliber (DN)
      20mm
      25mm

      Q4m3/h
      5
      7.875

      Q3m3/h
      4
      6.3

      R80
      80
      126

      Transitional flow rate (Q2)R100

      64
      100.8

      R160
      40
      63

      R80
      50
      78.75

      Minimum flow rate (Q1)R100

      40
      63

      R160
      25
      39.375

      Minimum reading m3/h
      0.00001

      Maximum reading m3/h
      99999.9999


      Type
      LXSGY-15E
      LXSGY-20E
      LXSGY-25E

      Total Length
      260mm
      295mm
      345mm

      Length
      165mm
      190mm
      225mm

      Width
      95mm
      95mm
      90mm

      Height
      125mm
      125mm
      130mm

      Connection Thread
      G3/4
      G1
      G1-1/4

      Weight
      1kg
      1.2kg
      1.7kg

        Note:

        1. Total length including the length of Nipple and nut (single length refers to the length of the water meter).

        2. The size and weight of the product shall be subject to the physical object and the order requirements.

Working Specifications

      Working Voltage
      Working Temperature
      Working Current
      Communication Method

      DC9-15V(RS485)/DC24-36V(M-BUS)
      -10~45°C
      ≤9mA
      RS-485; M-BUS

Flow Rate Specifications

      Nominal Caliber (DN)
      20mm
      25mm

      Q4m3/h
      5
      7.875

      Q3m3/h
      4
      6.3

      R80
      80
      126

      Transitional flow rate (Q2)R100

      64
      100.8

      R160
      40
      63

      R80
      50
      78.75

      Minimum flow rate (Q1)R100

      40
      63

      R160
      25
      39.375

      Minimum reading m3/h
      0.00001

      Maximum reading m3/h
      99999.9999

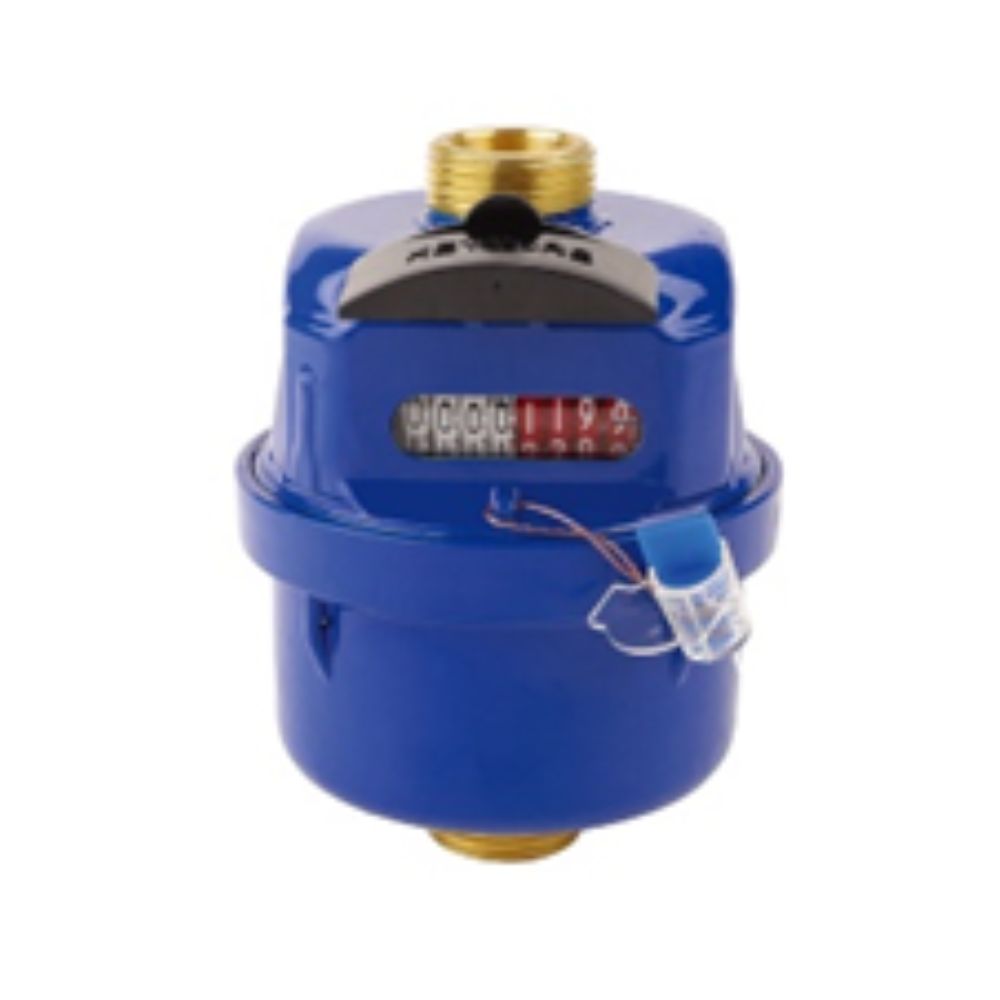

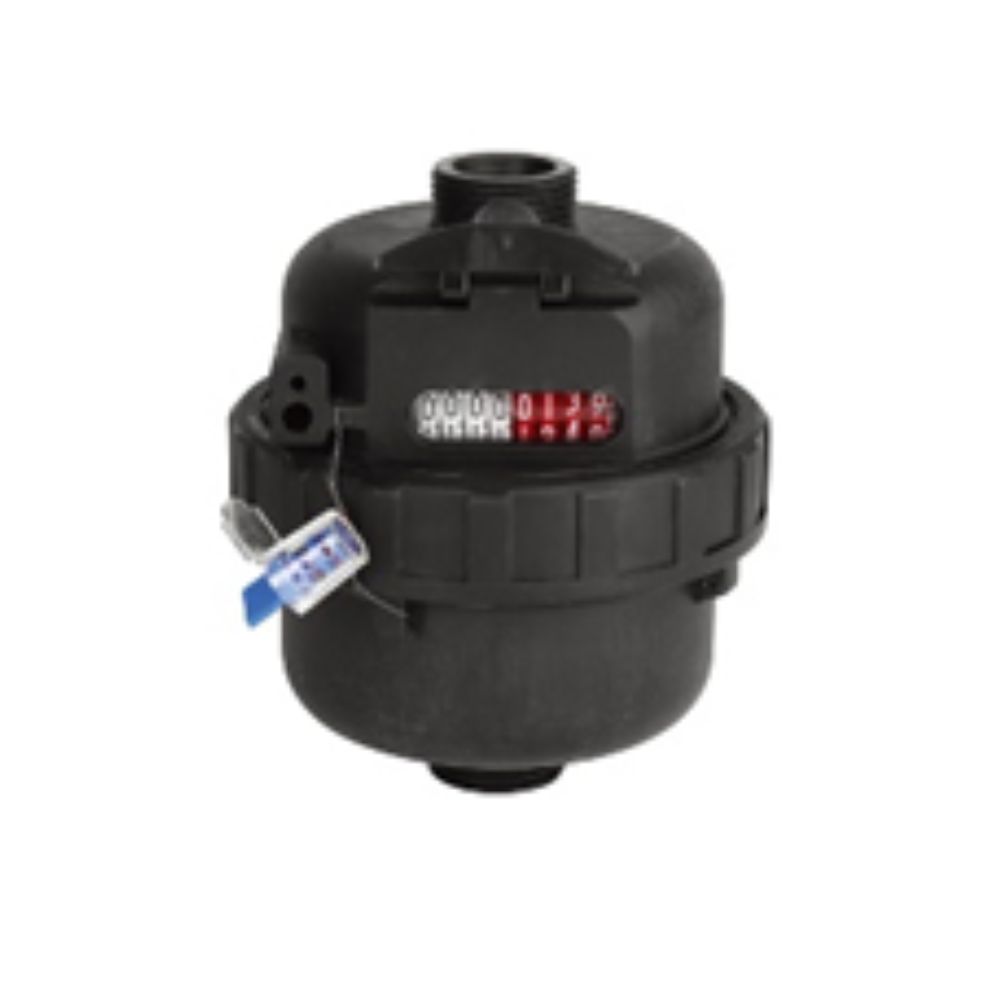

d. Mechanical Water Meter Series

Under the measurement conditions, continuous flow, memory and display of the total amount of cold (hot) water flowing through the enclosed full pipe.

Performance Characteristics
• Metering structure: single stream or multi-stream structure is adopted
• Wet type movement: high sensitivity; special liquid encapsulation of the character wheel window can keep the reading clear for a long time
• Dry-type movement : magnetic transmission in the center of the movement, anti-magnetic interference, good stability, strong structure anti-freezing ability, clear reading
• Optional materials: ductile iron, engineering plastics, copper, stainless steel
• Temperature class: T30, T90
• Accuracy Class: Class 2

hello world!

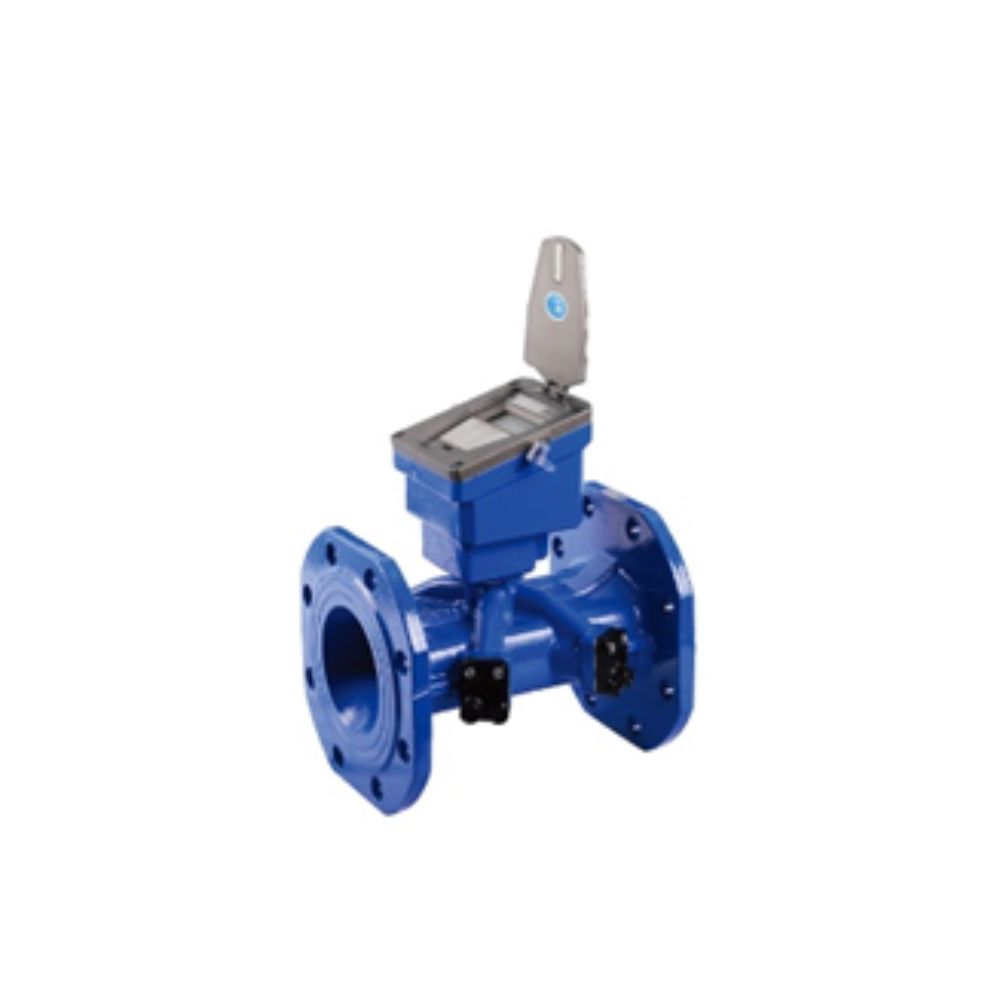

C. Prepaid Water Meter Series

The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.

Performance Characteristics
• The prepaid water meter is a new type of measuring instrument that uses a new type of microprocessor to realize water volume collection, processing, display and storage.
• Liquid-sealed movement :High sensitivity, special liquid encapsulation of the character wheel window can keep the reading permanently clear.
• Dry core: Central magnetic drive, anti-magnetic interference, good stability, strong anti-freezing ability, and permanent clear reading.
• Prepaid function, pay first, use later
• Support tiered water prices, one card with multiple meters
• Anti-magnetic interference function, low power consumption, long use time
• The enclosure protection grade is IP68
• Optional materials: ductile iron, engineering plastics , copper, stainless steel
• Environmental level: Class B electromagnetic environment : E1
• Temperature class: T30, T90
• Accuracy Class: Class II

hello world!

GEt A Free Quotation Now

Why not give us a call or send us your engineering details & our technical consultant will contact you & provide you with a comprehensive proposal.

Quote Now
