VALVESEAL

VALVESEAL was born from the experience of a team of professionals with over 25 years in the Valve Fluid Handling and Sealing Service Solutions sector.
Orientated to give integral solutions in the control and handling of fluids in specific areas such as the World of Water, Fire-Fighting installations, HVAC and industry.
In addition, VALVESEAL supply the TECFLOW brand for the water sector and has a wide range of valves and accessories to provide solutions for all types of water installations, whether is water treatment plant, wastewater drainage, piping or desalination plants. TECFLOW has a range of products with FM/UL approval for fire-fighting installations and valves for air-conditioning and industry.

Tecflow valves

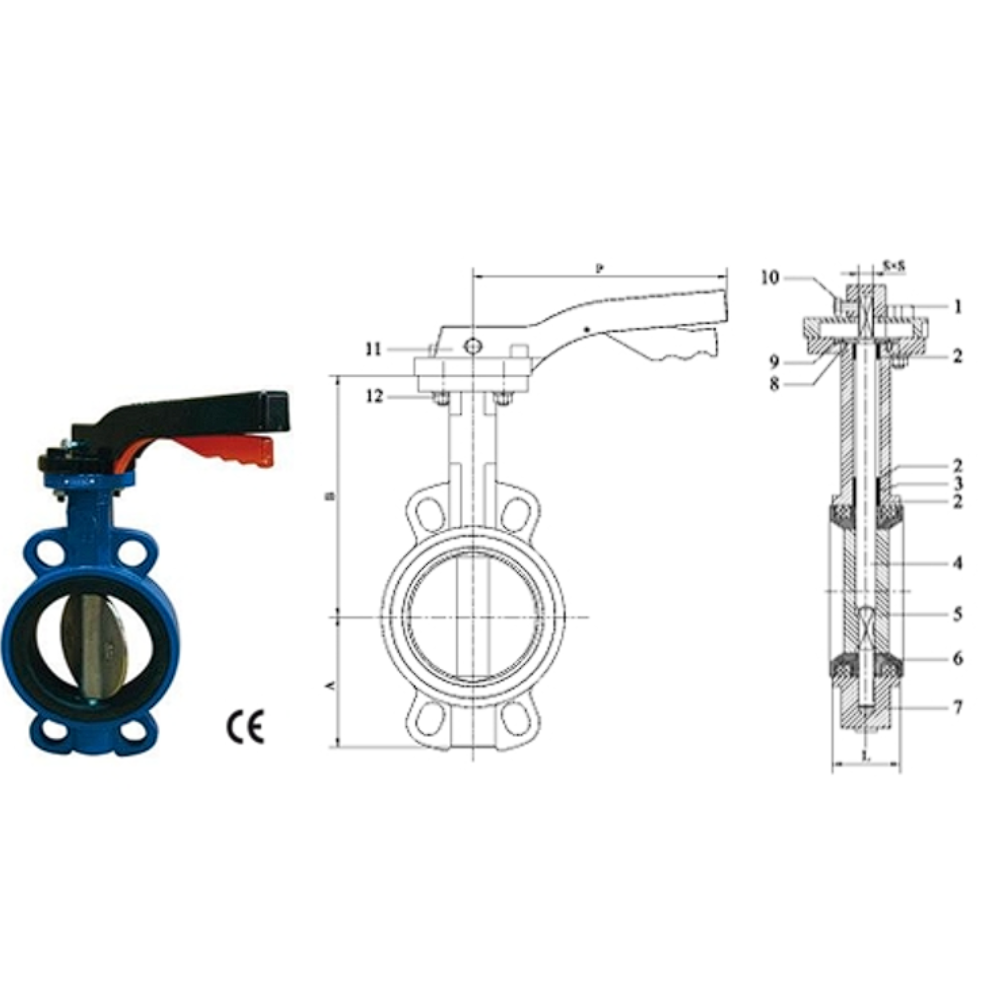

Butterfly Valve PN16 Wafer Type for Flanges PN10/16/ANSI150


Model : TF-BFV-W
Type : Concentric Disc Valves
Range : DN40 to DN600
Design : BS EN 593
Face to Face : EN558-1 Serie 20, ISO 5272 Serie 20, DIN 3202
Mounting between flanges : PN10/PN16, EN1092-2, BS450, ANSI B16.1-5
Pressure Test : EN12266-1, DIN 3230, BS6755 y ISO 5208
Maximum Working Pressure : 16 bar
Working Temperature : -10°C to +120 °C
Applications : Air conditioning, water services and industry
No. Part Material Options
1 Locking Plate Aluminium
2 Bushing PTFE
3 O-ring NBR EPDM
4 Stem SS420
5 Disc Ductile Iron GJS400 SS316
6 Seat EPDM NBR
7 Body Ductile Iron GJS400
8 Screws SS304
9 Thrust Washer Carbon Steel
10 Screw SS304
11 Lever Aluminium
12 Bolt & Nut SS3034

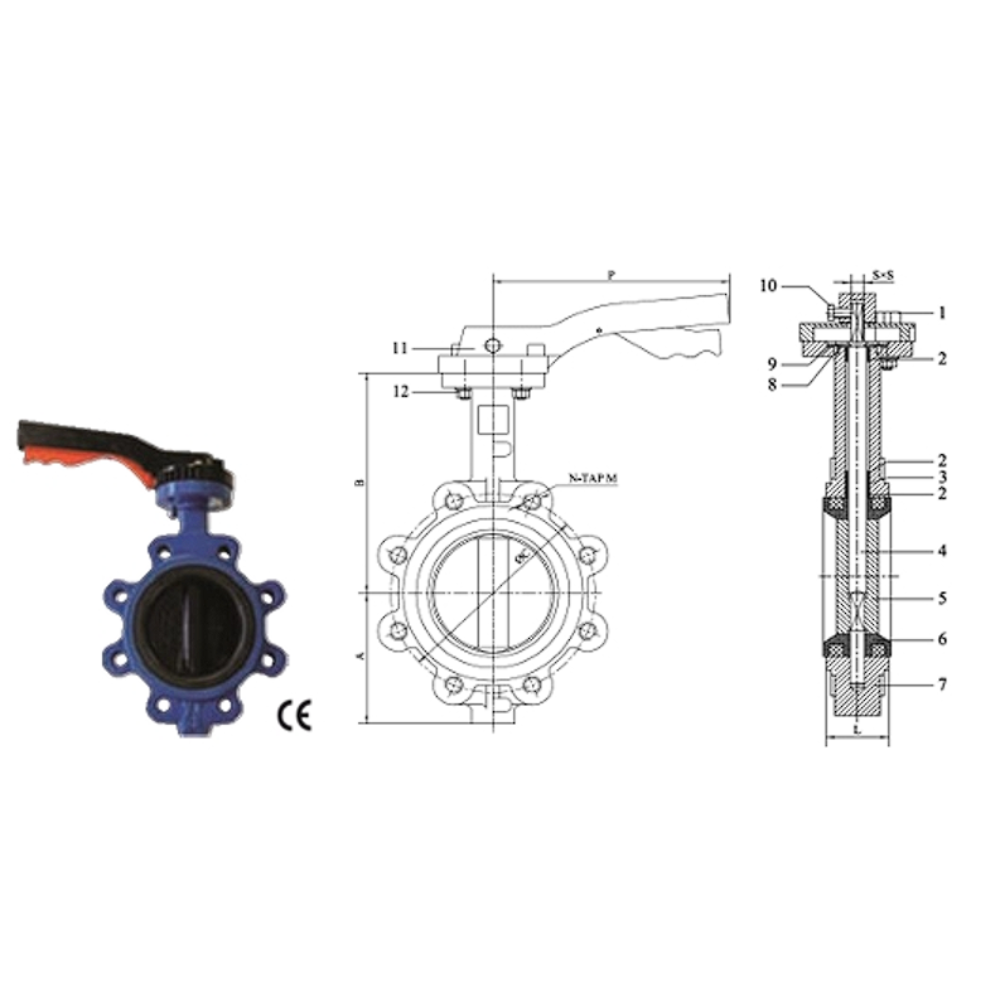

Butterfly Valve PN16 Lug Type for Flanges DIN PN-16


Model : TF-BFV-L
Type : Concentric Disc Valves
Range : DN40 to DN300
Design : BS EN 593
Face to Face : EN558-1 Serie 20, ISO 5272 Serie 20, DIN 3202
Mounting between flanges : PN10/PN16, EN1092-2
Pressure Test : EN12266-1, DIN 3230, BS6755 y ISO 5208
Maximum Working Pressure : 16 bar
Working Temperature : -10°C to +120 °C
Applications : Air conditioning, water services and industry
No. Part Material Options
1 Locking Plate Aluminium
2 Bushing PTFE
3 O-ring NBR EPDM
4 Stem SS420
5 Disc Ductile Iron GJS400 SS316
6 Seat EPDM NBR
7 Body Ductile Iron GJS400
8 Screws SS304
9 Thrust Washer Carbon Steel
10 Screw SS304
11 Lever Aluminium
12 Bolt & Nut SS3034

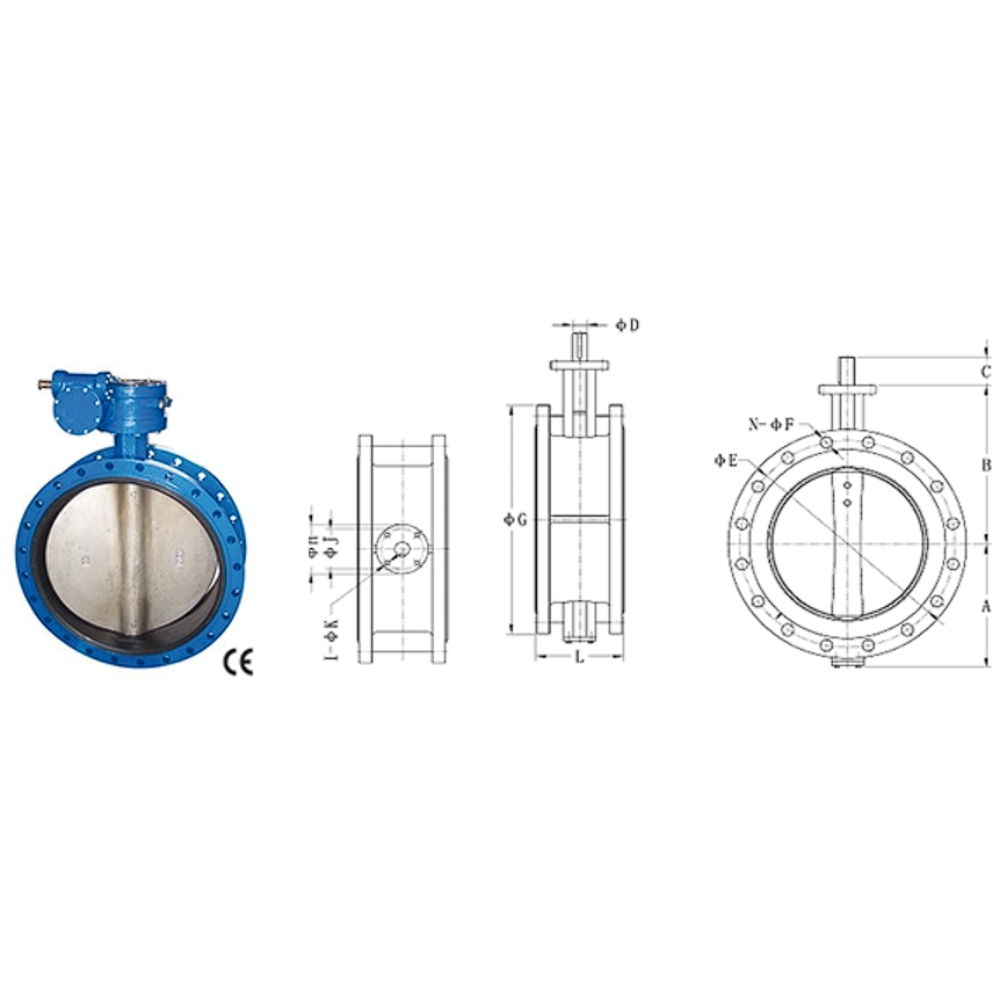

Flanged Butterfly Valves PN16 Flanges DIN PN10/16


Model : TF-BFV-FS13
Type : Concentric Disc Valves
Range : DN50 to DN1200
Design : EN 1074-2
Face to Face : EN558-1 Serie 13
Mounting between flanges : PN10/PN16, EN1092-2
Pressure Test : EN12266-1, DIN 3230, BS6755 y ISO 5208
Maximum Working Pressure : 16 bar
Working Temperature : -10°C to +100 °C
Applications : Air conditioning, water services and industry
No. Part Material Options
1 Stem SS420 SS316/416
2 Body Ductile Iron GJS400
3 Disc Ductile Iron GJS400 SS316
4 Seat EPDM NBR/PTFE/VITON
5 End Cap Ductile Iron GJS400
6 Bolts Zinc Plated Steel SS A2
7 Taper Pin SS304 SS316
8 O-Ring NBR EPDM/VITON
9 Bushing Lubricated Bronze
10 Key Carbon Steel

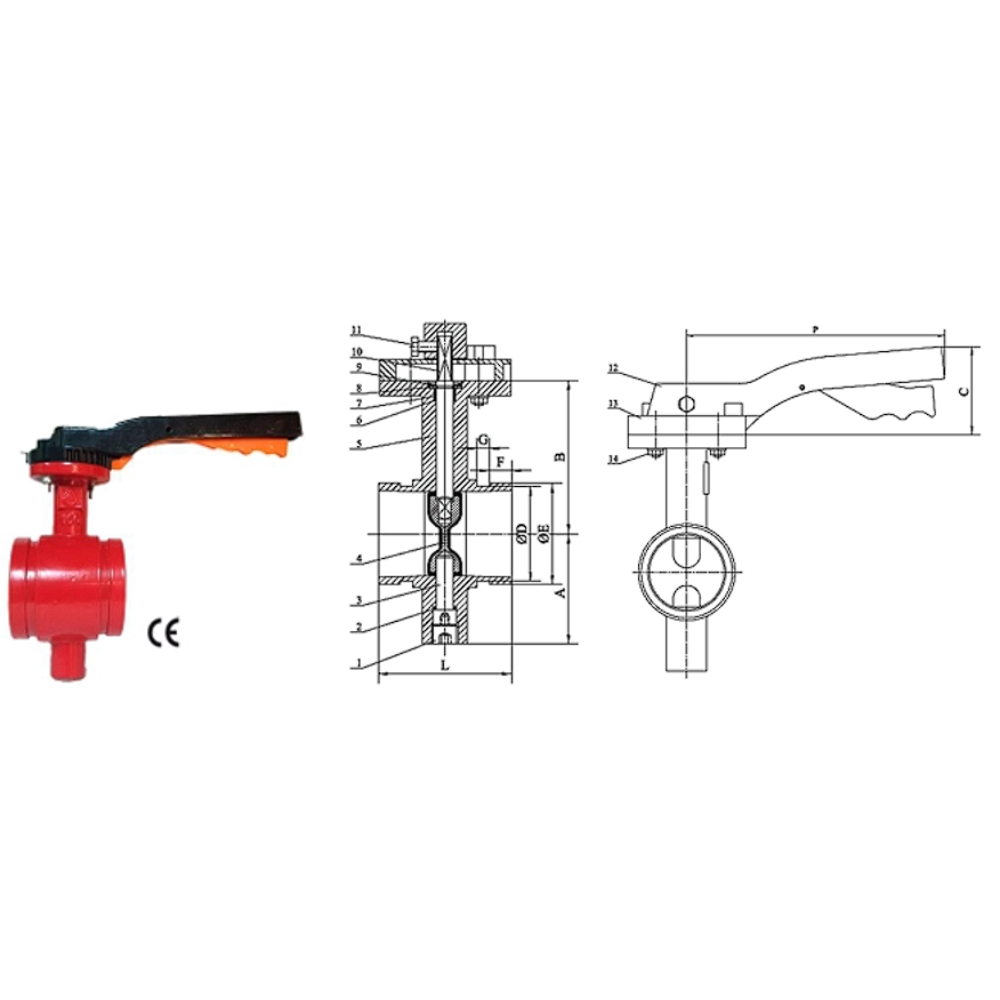

Groove Butterfly Valve PN16 with Handlever


Model : TF-BFV-G
Type : Groove Valves
Range : DN50 to DN300
Design : MSS SP-67
Grooved : AWWA C606 Table 4
Pressure Rating : 16 Bar
Pressure Test : EN12266-1 Rate A
Maximum Working Pressure : 16 bar
Working Temperature : 0°C to +80 °C
Applications : Fire protection systems, HVAC and industrial
No. Part Material
1 Stopper Carbon Steel
2 O-Ring EPDM
3 Lower Stem SS 420
4 Disc Ductile Iron EN-GJS-400 + EPDM
5 Body Ductile Iron EN-GJS-400
6 O-Ring EPDM
7 Bushing PTFE
8 Thrust Washer Carbon Steel
9 Circlip Carbon Steel
10 Upper Stem SS 420
11 Screw Carbon Steel
12 Lever handle Aluminium
13 Throttling Plate Aluminium
14 Bolt & Nut Carbon Steel

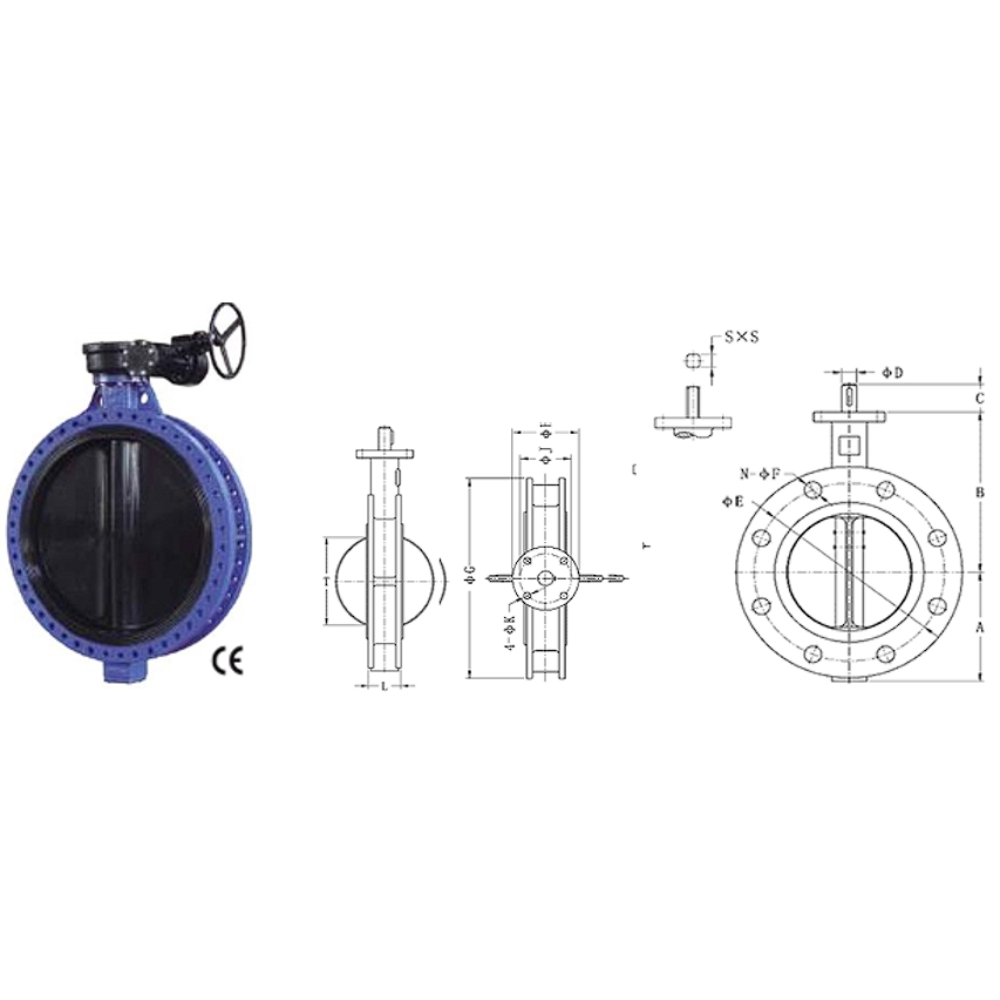

Flanged Butterfly Valve PN16 Flanges DIN PN10/16


Model : TF-BFV-FS20
Type : Concentric Disc Valves
Range : DN50 to DN1200
Design : EN 1074-2
Face to Face : EN 558-1 Serie 20
Mounting between Flanges : PN10/ PN16 EN 1092-2
Pressure Test : EN12266-1, DIN 3230, BS6755 y ISO 5208
Maximum Working Pressure : 16 bar
Working Temperature : -10°C to +100 °C
Applications : Water, HVAC, pressurized air and industrial
No. Part Material Options
1 Stem SS 420 SS 316/416
2 Body Ductile Iron GJS400
3 Disc Ductile Iron GJS400 SS 316
4 Seat EPDM NBR/PTFE/VITON
5 End Cap Ductile Iron GJS400
6 Bolts Zinc Plated Steel SS 42
7 Taper Pin SS 304 SS 316
8 O-Ring NBR EPDM/VITON
9 Bushing Lubricated Bronze
10 Key Carbon Steel

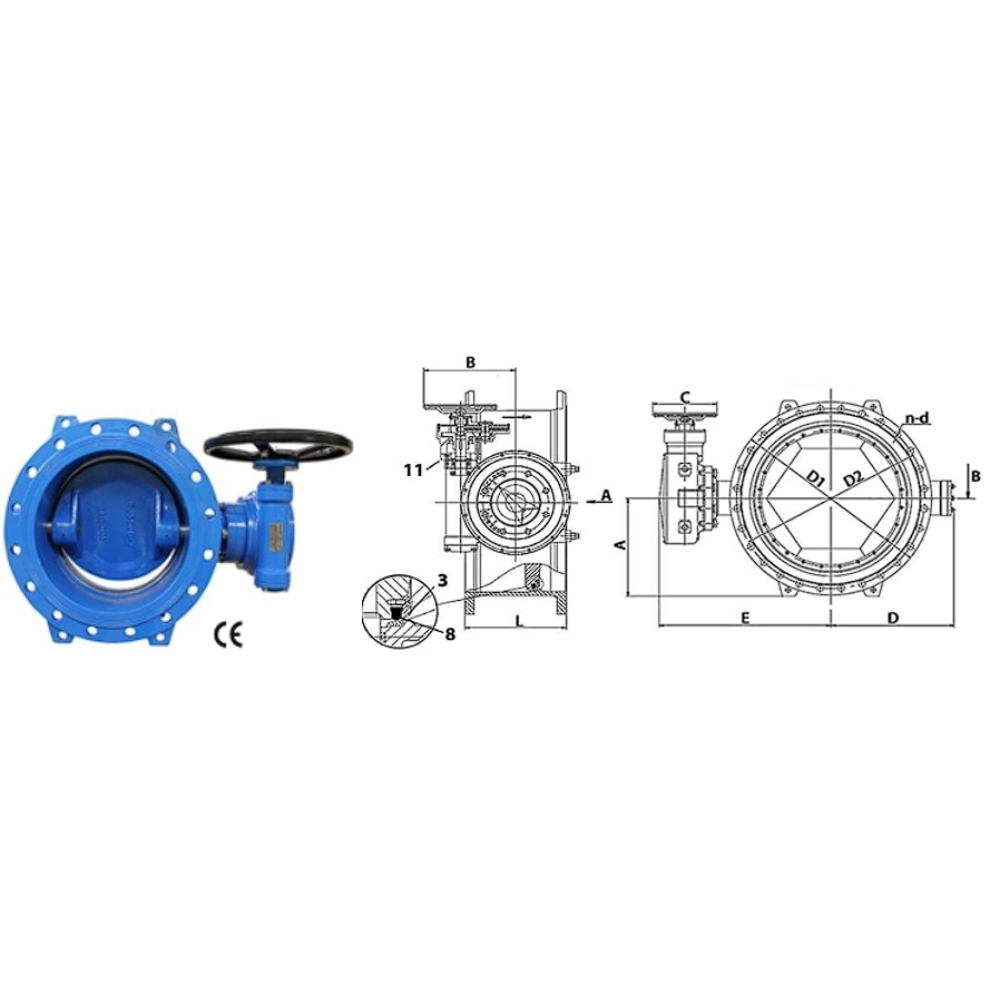

Double Eccentric Butterfly Valve PN10 Flanges DIN PN10


Model : TF-DE-BFV-F10
Type : Double Eccentric Butterfly Valves
Range : DN100 to DN2000
Design : EN 593
Face to Face : EN 558-1 Serie 14
Mounting with Flanges : PN10 EN 1092-2
Pressure Test : EN12266-1
Maximum Working Pressure : 10 bar
Working Temperature : -5°C to +80 °C
Applications : Portable Water
No. Part Material
1 Body Ductile Iron GJS500
2 Disc Ductile Iron GJS500
3 Retaining Ring Steel
4 Stem SS X20Cr13
5 Stem SS X20Cr13
6 Bearing Bush Aluminium Bronze
7 Cover Ductile Iron GJS500
8 Sealing Ring EPDM
9 O-Ring EPDM
10 Key SS X20Cr13

Double Eccentric Butterfly Valve PN16 Flanges DIN PN16


Model : TF-DE-BFV-F16
Type : Double Eccentric Butterfly Valves
Range : DN100 to DN2000
Design : EN 593
Face to Face : EN 558-1 Serie 14
Mounting with Flanges : PN16 EN 1092-2
Pressure Test : EN12266-1
Maximum Working Pressure : 16 bar
Working Temperature : -5°C to +80 °C
Applications : Portable Water
No. Part Material
1 Body Ductile Iron GJS500
2 Disc Ductile Iron GJS500
3 Retaining Ring Steel
4 Stem SS X20Cr13
5 Stem SS X20Cr13
6 Bearing Bush Aluminium Bronze
7 Cover Ductile Iron GJS500
8 Sealing Ring EPDM
9 O-Ring EPDM
10 Key SS X20Cr13

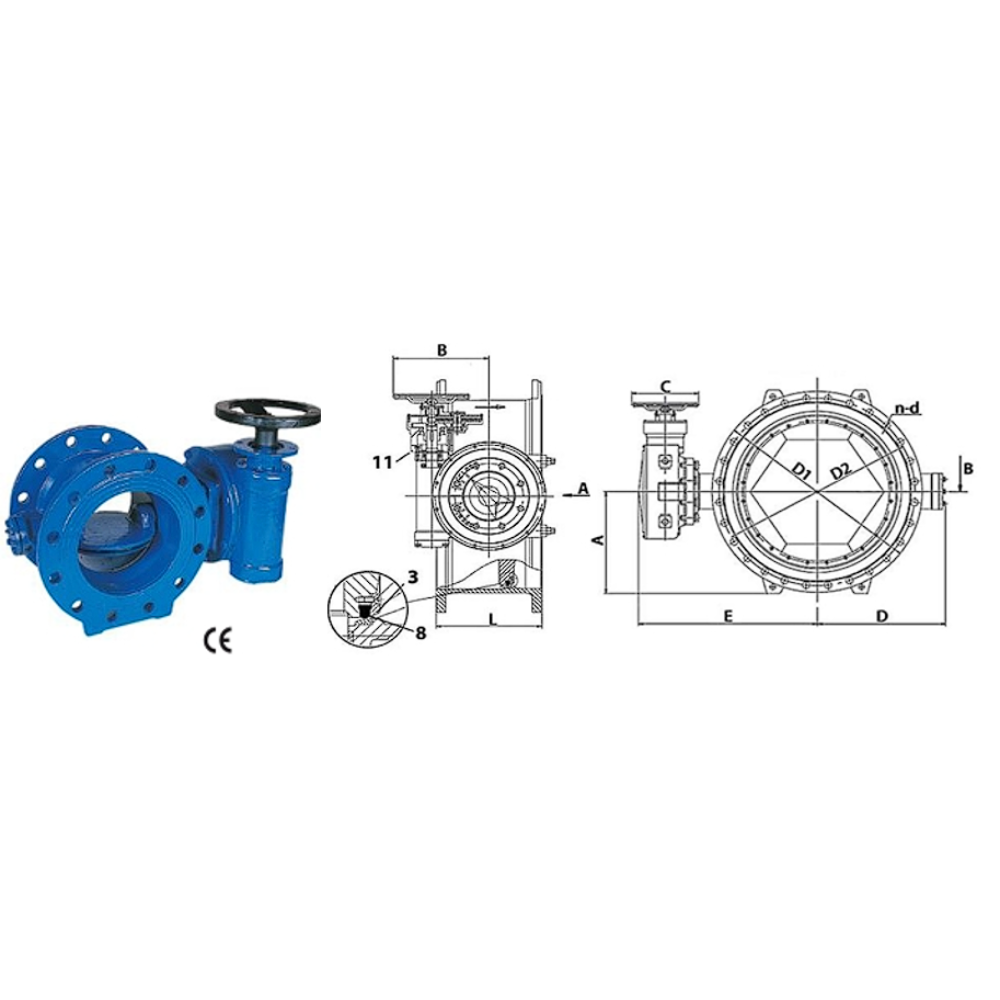

Double Eccentric Butterfly Valve PN25 Flanges DIN PN25


Model : TF-DE-BFV-F25
Type : Double Eccentric Butterfly Valves
Range : DN100 to DN1600
Design : EN 593
Face to Face : EN 558-1 Serie 14
Mounting with Flanges : PN25 EN 1092-2
Pressure Test : EN12266-1
Maximum Working Pressure : 25 bar
Working Temperature : -5°C to +80 °C
Applications : Portable Water
No. Part Material
1 Body Ductile Iron GJS500
2 Disc Ductile Iron GJS500
3 Retaining Ring Steel
4 Stem SS X20Cr13
5 Stem SS X20Cr13
6 Bearing Bush Aluminium Bronze
7 Cover Ductile Iron GJS500
8 Sealing Ring EPDM
9 O-Ring EPDM
10 Key SS X20Cr13

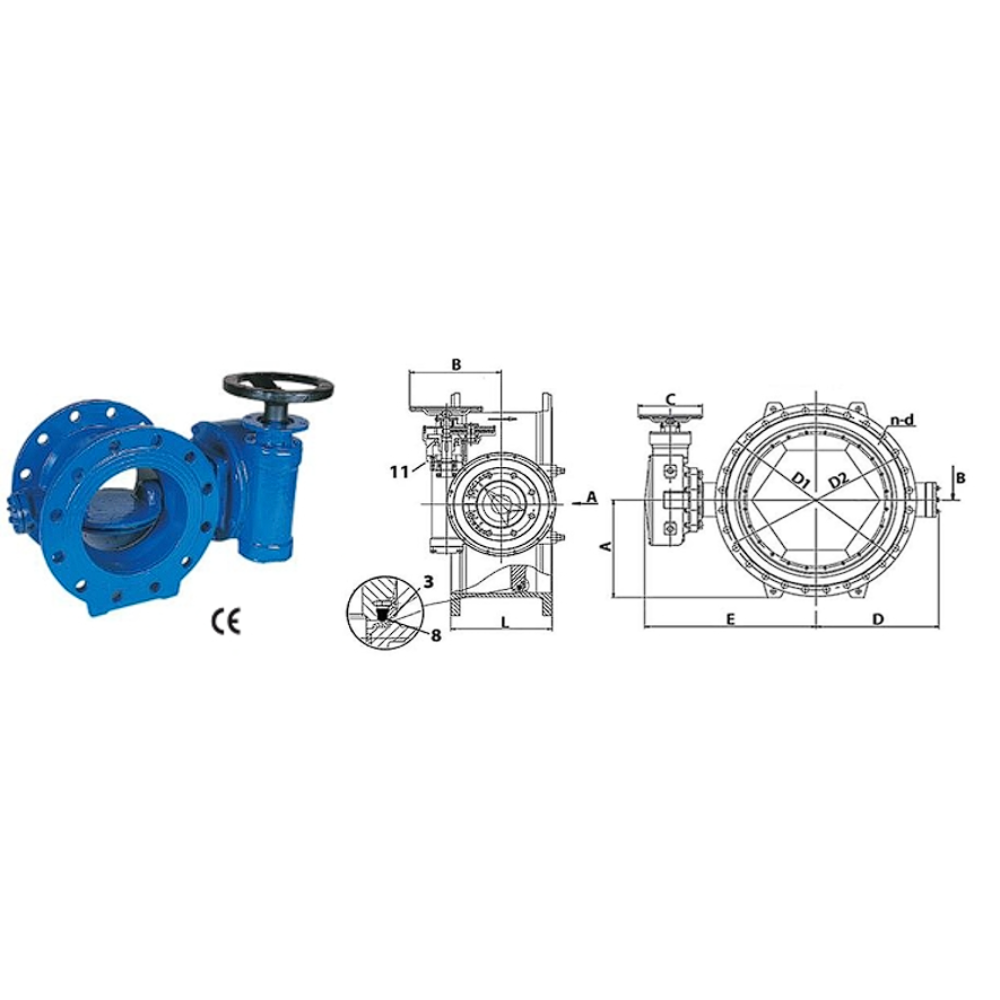

Double Eccentric Butterfly Valve PN40 Flanges DIN PN40


Model : TF-DE-BFV-F40
Type : Double Eccentric Butterfly Valves
Range : DN100 to DN1200
Design : EN 593
Face to Face : EN 558-1 Serie 14
Mounting with Flanges : PN40 EN 1092-2
Pressure Test : EN12266-1
Maximum Working Pressure : 40 bar
Working Temperature : -5°C to +80 °C
Applications : Portable Water
No. Part Material
1 Body Ductile Iron GJS500
2 Disc Ductile Iron GJS500
3 Retaining Ring Steel
4 Stem SS X20Cr13
5 Stem SS X20Cr13
6 Bearing Bush Aluminium Bronze
7 Cover Ductile Iron GJS500
8 Sealing Ring EPDM
9 O-Ring EPDM
10 Key SS X20Cr13
